The maximum output power of the TOP250R-TL is 250W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
To ensure the TOP250R-TL operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Also, make sure to provide adequate heat sinking and thermal management.
The BYPASS pin is used to connect an external bypass capacitor to improve the power supply's noise immunity and electromagnetic compatibility (EMC).
Choose a transformer with a suitable turns ratio, core material, and winding configuration to ensure efficient energy transfer and minimize losses. Consult the datasheet and application notes for guidance on transformer selection.
Follow the recommended layout and PCB design guidelines in the datasheet and application notes to minimize electromagnetic interference (EMI), ensure proper heat sinking, and optimize the power supply's performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TOP250R-TL Overview

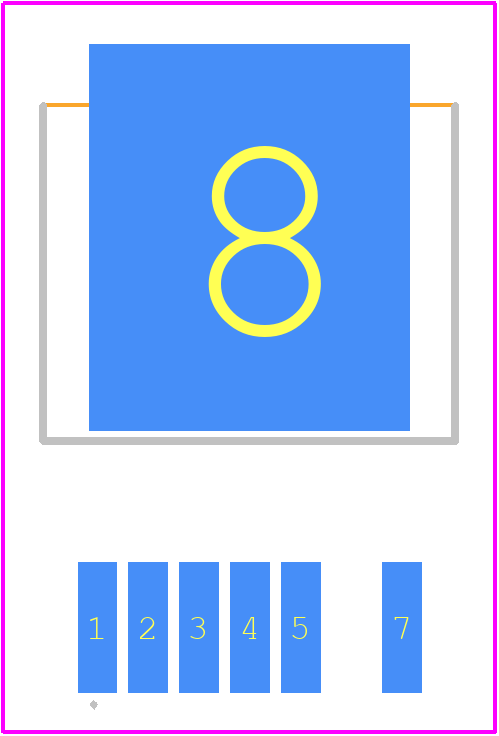

Use the download button to access the TOP250R-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TOP25,
or try a keyword search, such as Power Management Circuits
