Part Image

TOP264VG - Power Integrations

Description: Power Integrations TOP264VG, AC-DC Converter 7A, 5 V dc 11-Pin, eDIP-12

Download TOP264VG Model

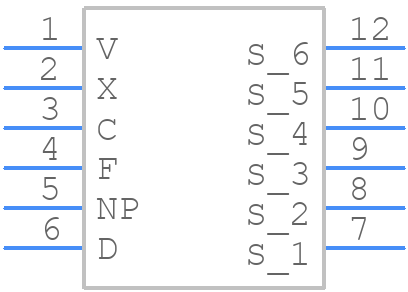

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TOP264VG - Power Integrations PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Row Pitch
click to zoom
3D Models
TOP264VG - Power Integrations  - 3D model - Dual-In-Line Packages - Row Pitch
click to zoom

TOP264VG Details

  • Manufacturer Part Number:

    TOP264VG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    7

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

TOP264VG Frequently Asked Questions (FAQs)

  • The maximum output power of the TOP264VG is 65W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
  • To ensure the TOP264VG operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Additionally, ensure proper thermal management and PCB layout to minimize thermal resistance and electromagnetic interference (EMI).
  • The BYPASS pin is used to connect an external bypass capacitor to filter the internal voltage regulator output. This helps to reduce noise and improve the overall power supply performance.
  • When selecting a transformer for your TOP264VG-based design, consider the input voltage, output voltage, and power rating. Ensure the transformer's voltage rating, current rating, and turns ratio are compatible with the TOP264VG's specifications. Consult the datasheet and application notes for guidance on transformer selection.
  • For optimal performance and reliability, ensure good PCB layout practices, such as separating high-current and low-current paths, using thermal vias, and providing adequate heat sinking. Follow the datasheet's guidelines for thermal management and PCB layout to minimize thermal resistance and EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TOP264VG Overview

Use the download button to access the TOP264VG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TOP26, or try a keyword search, such as Power Management Circuits
