A good PCB layout for the TOP268KG-TL involves keeping the high-voltage nodes (e.g., drain and source) away from the low-voltage nodes (e.g., VCC and GND). Use a solid ground plane and keep the power traces short and wide. Refer to the Power Integrations application note AN-41 for more details.
To ensure reliable start-up and shutdown, make sure to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using a soft-start capacitor (CSS) and a shutdown resistor (RSD) to control the rate of voltage rise and fall.
The TOP268KG-TL has a maximum junction temperature (TJ) of 150°C. Ensure good thermal conduction by using a heat sink or thermal pad, and follow the thermal design guidelines in the datasheet to prevent overheating.
The snubber circuit (RCD) helps to reduce electromagnetic interference (EMI) and voltage spikes. Optimize the snubber circuit by selecting the correct values for R, C, and D based on the specific application requirements and following the guidelines in the datasheet.
To minimize EMI, use a shielded transformer, keep the layout compact, and use a common-mode choke (CMC) or a differential-mode choke (DMC) in the input and output lines. Additionally, follow the EMI mitigation guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TOP268KG-TL Overview

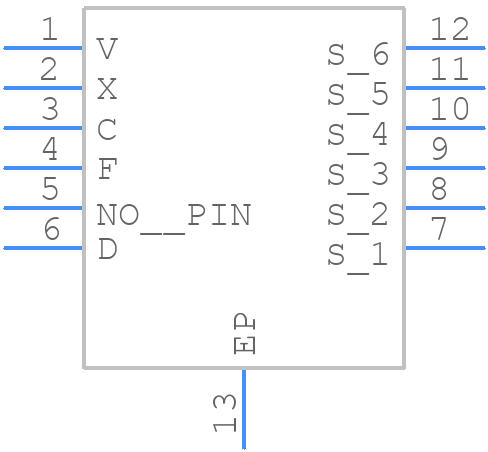

Use the download button to access the TOP268KG-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TOP26,
or try a keyword search, such as Power Management Circuits
