The maximum output power of the TOP268VG is 65W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
To ensure the TOP268VG operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Additionally, ensure proper thermal management and PCB layout to minimize thermal resistance and electromagnetic interference (EMI).
The BYPASS pin is used to connect an external bypass capacitor to improve the power supply's noise immunity and electromagnetic compatibility (EMC). It is recommended to connect a 10nF to 100nF capacitor between the BYPASS pin and the primary side of the transformer.
To optimize the transformer design, follow the guidelines in the datasheet for transformer turns ratio, primary inductance, and leakage inductance. Additionally, consider the transformer's core material, wire size, and insulation to minimize losses and ensure reliable operation.
The recommended input capacitor value for the TOP268VG is 1uF to 10uF, depending on the input voltage and output power requirements. A larger input capacitor can help reduce input voltage ripple and improve the power supply's stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TOP268VG Overview

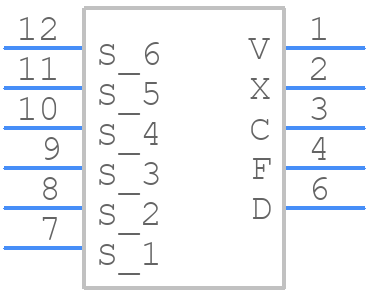

Use the download button to access the TOP268VG schematic symbol, PCB footprint, and 3D model.
