A good PCB layout for the TOP269KG-TL should have a solid ground plane, keep the input and output stages separate, and use a star-configuration for the transformer connections. Additionally, keep the feedback components close to the IC and use a shielded cable for the feedback signal.
When selecting a transformer for the TOP269KG-TL, consider the output power, input voltage, and desired output voltage. The transformer's turns ratio, inductance, and core material should be chosen to ensure efficient energy transfer and minimize losses. Consult the datasheet and application notes for guidance.
The TOP269KG-TL has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance. Monitor the IC's temperature and adjust the design as needed to prevent overheating.
To ensure EMC, follow the recommended PCB layout, use a shielded transformer, and add EMI filters as needed. Ensure the design meets the relevant EMC standards (e.g., CISPR 22, EN 55022) and perform EMC testing to validate the design.
Input filtering is crucial to reduce EMI and ensure reliable operation. Use a pi-filter or a common-mode choke to filter the input. For output filtering, use a capacitor and a resistor in parallel to filter the output voltage and reduce ripple.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TOP269KG-TL Overview

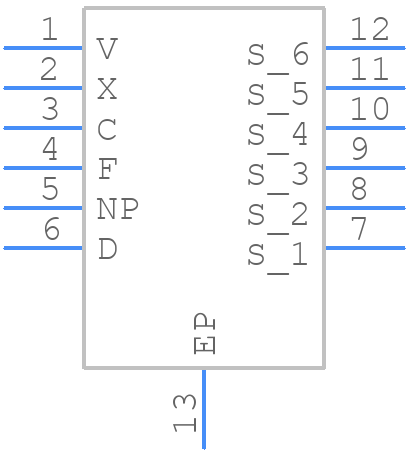

Use the download button to access the TOP269KG-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TOP26,
or try a keyword search, such as Power Management Circuits
