Description:AC/DC, 85-264VAC, 91W, 11SOP; Input Voltage AC Min:85V; Input Voltage AC Max:265V; AC / DC Converter Case Style:SOP; No. of Pins:12Pins; Power Rating:91W; Topology:Flyback; Operating Temperature Min:-40°C; Operating Temperature RoHS Compliant: Yes
The maximum output power of the TOP270KG is 270W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
To ensure the TOP270KG operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Additionally, ensure proper thermal management and PCB design.
The recommended PCB layout for the TOP270KG involves placing the device near the input capacitors, using a solid ground plane, and minimizing the length of the high-current paths. Refer to the datasheet and application notes for more details.
To select the right transformer for the TOP270KG, consider the input voltage, output voltage, and power rating. The transformer should be designed to handle the maximum output power and have a turns ratio that matches the input and output voltages.
When designing an EMI filter for the TOP270KG, consider the frequency range, attenuation requirements, and component selection. A common-mode choke, X-capacitors, and Y-capacitors are typically used to meet EMI standards such as CISPR 22 and FCC Part 15.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TOP270KG Overview

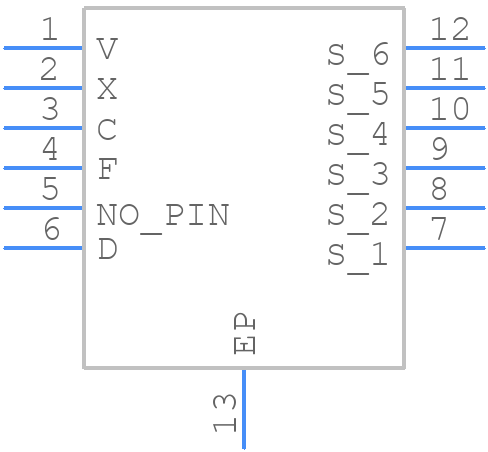

Use the download button to access the TOP270KG schematic symbol, PCB footprint, and 3D model.
