A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, with thermal vias connecting to the top layer under the IC. This helps to dissipate heat efficiently. Additionally, it's recommended to keep the PCB traces as short and wide as possible to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range. Additionally, consider using a thermal protection circuit to prevent overheating.
The recommended input capacitor value and type for optimal performance would be a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out noise and ripple on the input voltage, ensuring stable operation of the regulator.
To troubleshoot issues with the TP2302-VR, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or burning smells. Use an oscilloscope to check for noise or ripple on the input and output voltages. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the TP2302-VR can be used in a parallel configuration to increase output current. However, it's essential to ensure that the devices are properly synchronized and that the output voltages are matched to prevent current imbalance. Consult the datasheet and application notes for guidance on parallel configuration and synchronization techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TP2302-VR Overview

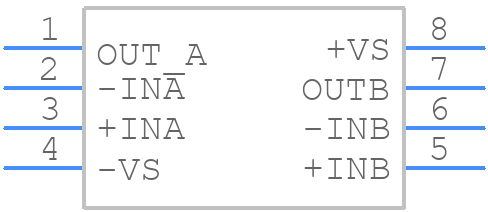

Use the download button to access the TP2302-VR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TP230,
or try a keyword search, such as Operational Amplifiers
