TP25DG24S05W - TOP POWER

Description: The rated output power of TP25DG converters is 25W, the outline dimensions is 50.8x50.8x11.2, 2:1 and 4:1 wide input voltage range, the voltage range is 9V-18V,18V-36V,36V-72V,9V-36V and 18V-72VDC.The accuracy of the converter can reach ±1%, it can be widely used in telecommunications, railway transportation, instrument and etc.

Download TP25DG24S05W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TP25DG24S05W - TOP POWER - PCB symbol
click to zoom
PCB Footprints

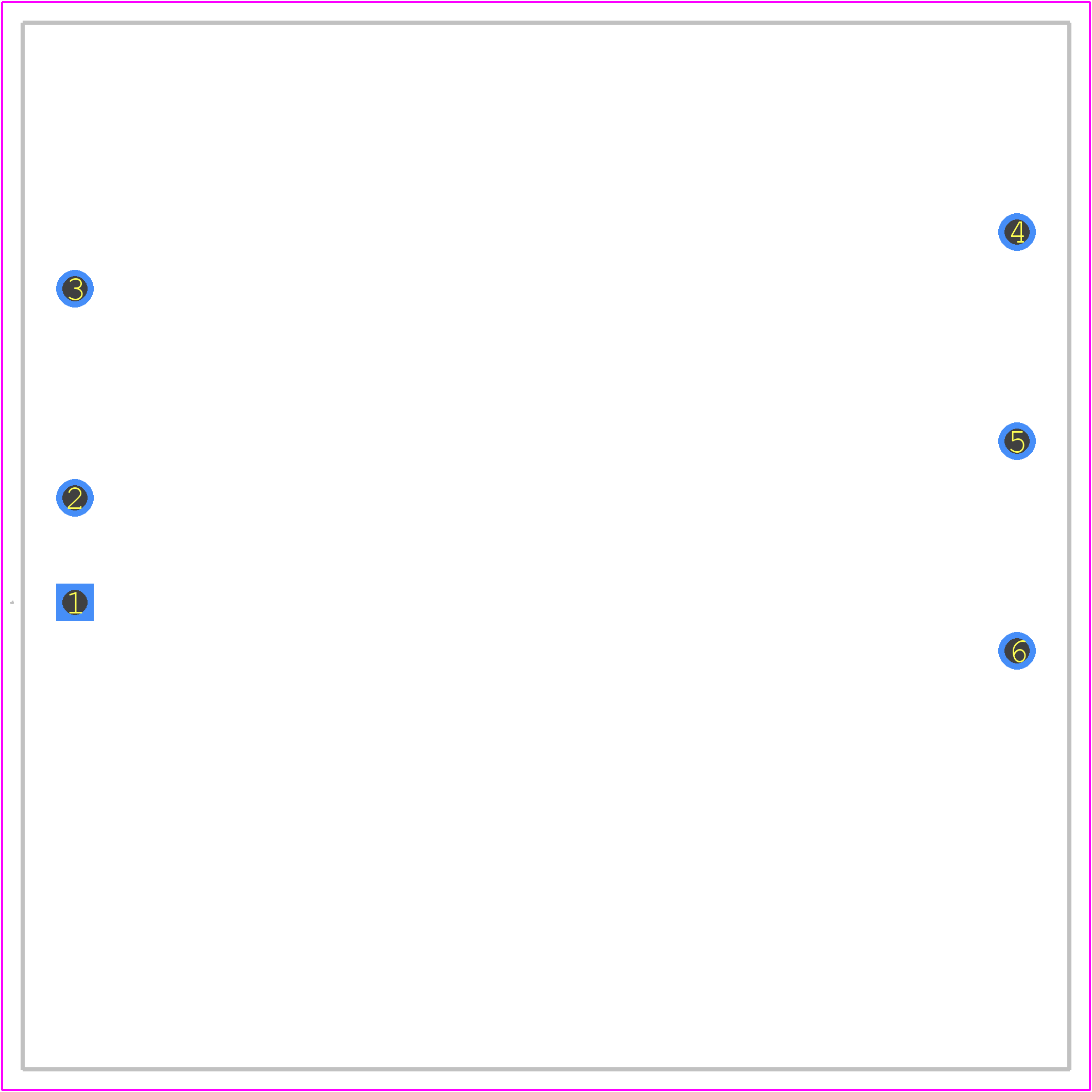

TP25DG24S05W - TOP POWER PCB footprint - Other - Other - 50.8x50.8x11.2
