TP2640LG-G - Microchip

Description: P-Channel 400 V 86mA (Tj) 740mW (Ta) Surface Mount 8-SOIC

Download TP2640LG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

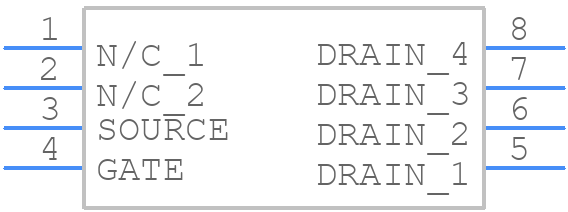

TP2640LG-G - Microchip - PCB symbol
click to zoom
PCB Footprints
TP2640LG-G - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD SOIC (LG/TG)
click to zoom
3D Models
TP2640LG-G - Microchip - 3D model - Small Outline Packages - 8-LEAD SOIC (LG/TG)
click to zoom

TP2640LG-G Details

  • Manufacturer Part Number:

    TP2640LG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    LOGIC LEVEL COMPATIBLE

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    400 V

  • Drain Current-Max (ID):

    0.086 A

  • Drain-source On Resistance-Max:

    15 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    12 pF

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation Ambient-Max:

    0.74 W

  • Power Dissipation-Max (Abs):

    0.74 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TP2640LG-G Frequently Asked Questions (FAQs)

  • Microchip recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal dissipation. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, including providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 4.5V to 5.5V to ensure reliable operation.
  • To troubleshoot issues with the device not turning on, check the input voltage, ensure the enable pin is properly biased, and verify that the device is not in shutdown mode. Also, check for any short circuits or incorrect pin connections.
  • Microchip recommends using a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor. This helps to filter out noise and ensure stable operation.
