A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the thermal pad and surrounding area clear of copper and solder mask helps to improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes using a heat sink, ensuring good airflow, and keeping the device within its recommended operating temperature range. Additionally, consider using thermal interface materials and thermal pads to improve heat transfer.
To mitigate EMI and RFI, use a multi-layer PCB with a solid ground plane, and ensure that the device is placed away from noise sources. Use shielded cables and connectors, and consider adding EMI filters or ferrite beads to the input and output lines. Additionally, follow proper PCB layout guidelines to minimize radiation and coupling.
To optimize the output filter design, use a combination of capacitors and inductors to filter out ripple and noise. Choose capacitors with low ESR and high ripple current ratings, and inductors with high saturation currents. Consider using a pi-filter or an LC filter configuration, and optimize the component values using simulation tools or SPICE models.
For testing and measurement, use a high-impedance probe or a differential probe to measure the output voltage and current. Use an oscilloscope with a bandwidth of at least 100 MHz to capture the switching frequency and ripple. Consider using a current probe or a hall effect sensor to measure the output current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TP3057N/NOPB Overview

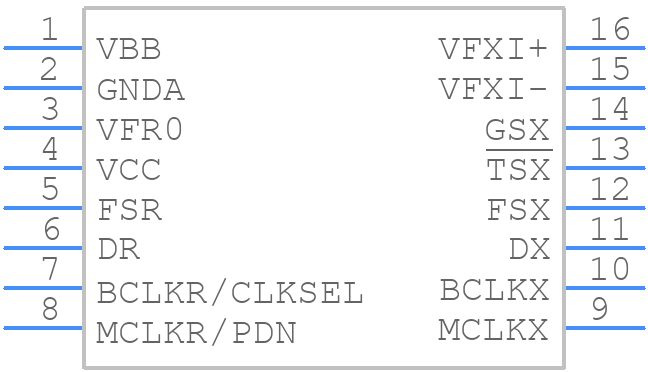

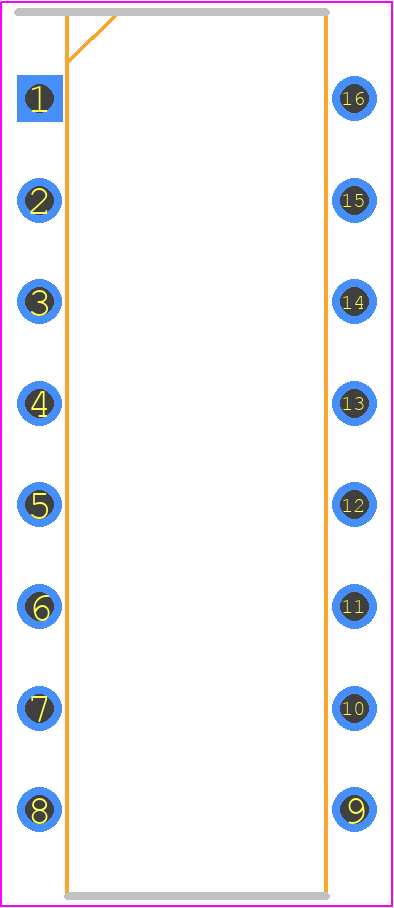

Use the download button to access the TP3057N/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TP305,
or try a keyword search, such as Codecs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
