TP3403V/NOPB - Texas Instruments

Description: DASL Digital Adapter for Subscriber Loops

Download TP3403V/NOPB Model

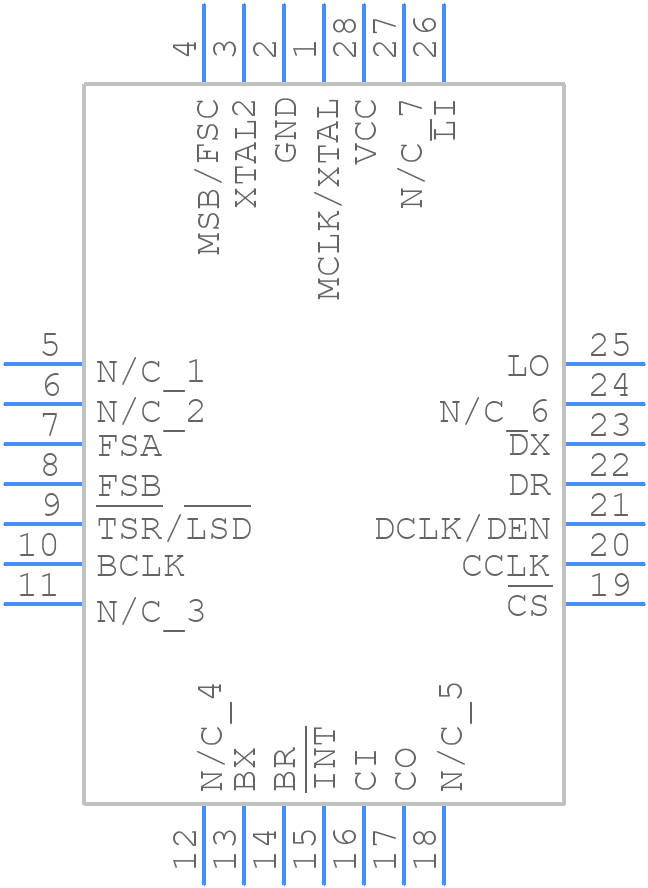

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

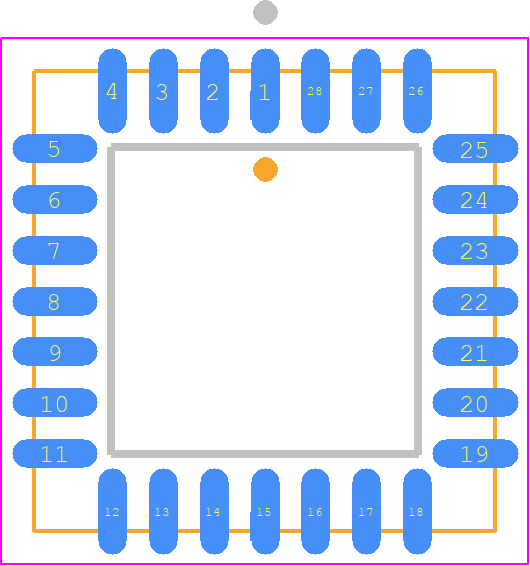

TP3403V/NOPB - Texas Instruments PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - plcc
click to zoom
3D Models
TP3403V/NOPB - Texas Instruments  - 3D model - Plastic Leaded Chip Carrier - plcc
click to zoom

TP3403V/NOPB Details

  • Manufacturer Part Number:

    TP3403V/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    245

  • Telecom IC Type:

    DIGITAL SLIC

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30
