A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal design and simulation tools to model the device's thermal performance and identify potential hotspots.
The quiescent current of the TP3404V/NOPB is relatively low, but it can still impact system power consumption, especially in low-power or battery-powered applications. Consider using power-saving modes or optimizing the system's power management to minimize the impact of quiescent current.
To troubleshoot issues with output voltage regulation, start by verifying the input voltage, output voltage, and feedback resistors. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging.
The TP3404V/NOPB is designed to meet EMI and EMC standards, but it's still important to follow proper PCB layout and design practices to minimize electromagnetic interference. Consider using shielding, filtering, and other EMI mitigation techniques to ensure compliance with relevant standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TP3404V/NOPB Overview

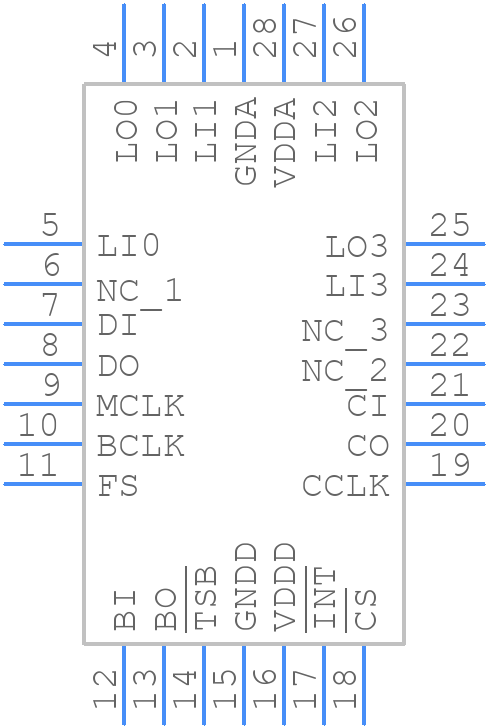

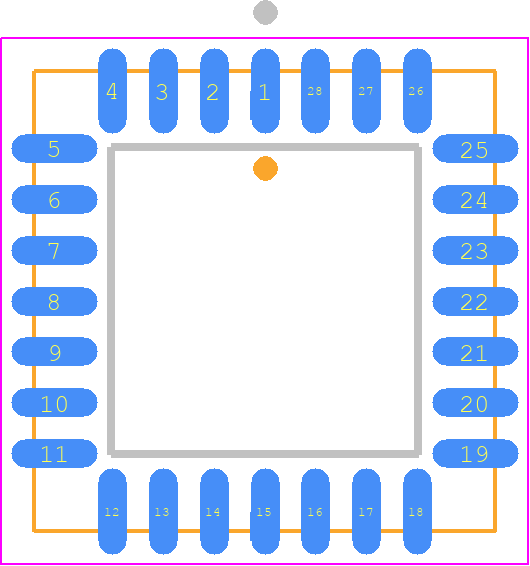

Use the download button to access the TP3404V/NOPB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TP340,
or try a keyword search, such as Digital Transmission Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
