SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
15 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA0152PWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA0152PWPR datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, keeping signal traces short, and using decoupling capacitors. Additionally, TI recommends using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The gain setting for the TPA0152PWPR depends on the specific application requirements. TI provides a gain setting table in the datasheet, but engineers should consider factors such as input signal amplitude, desired output power, and system impedance. It's recommended to consult the datasheet and application notes for guidance on selecting the correct gain setting.
The maximum power dissipation for the TPA0152PWPR is dependent on the operating conditions, such as ambient temperature, supply voltage, and output power. TI recommends following the thermal design guidelines in the datasheet to ensure the device operates within the safe operating area. In general, the maximum power dissipation is around 2.5W, but this can vary depending on the specific application.
The TPA0152PWPR has built-in short-circuit protection, but engineers should still implement external protection measures to ensure the device is protected from excessive current. This can be achieved by adding a current-limiting resistor in series with the output, using a fuse, or implementing a short-circuit detection circuit. TI recommends consulting the datasheet and application notes for guidance on implementing short-circuit protection.
The recommended input capacitor value for the TPA0152PWPR depends on the specific application requirements, such as input signal frequency and amplitude. TI recommends using a capacitor with a value between 1uF and 10uF, with a voltage rating that exceeds the maximum input voltage. The capacitor should be placed as close as possible to the input pins to minimize noise and ensure proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA0152PWPR Overview

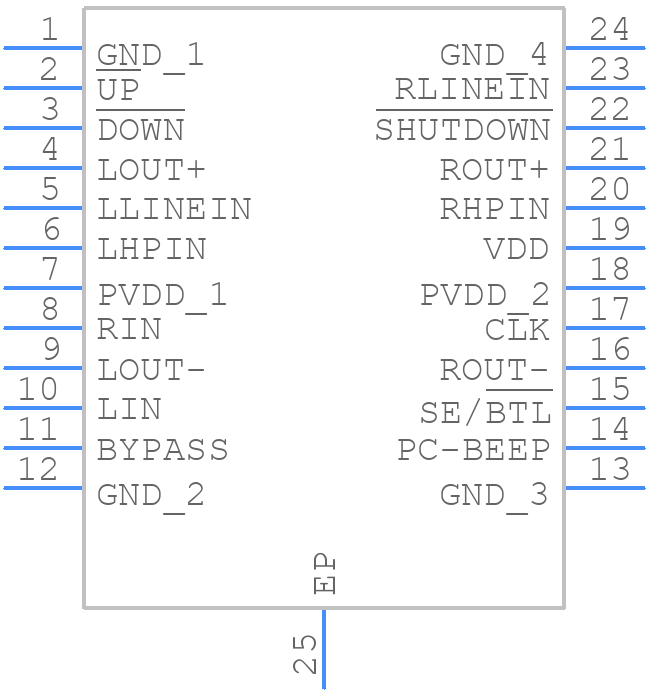

Use the download button to access the TPA0152PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA01,
or try a keyword search, such as Audio Control ICs
