SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
15 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA2008D2PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout for the TPA2008D2PWP in the application note SLVAU72, which includes guidelines for thermal pad connection, copper pour, and via placement to minimize thermal resistance and ensure reliable operation.
The gain setting for the TPA2008D2PWP depends on the specific application requirements. TI provides a gain selection table in the datasheet, which takes into account the input voltage, output power, and desired gain. Additionally, the TPA2008D2PWP evaluation module (TPA2008D2PWP-EVM) can be used to experiment with different gain settings and evaluate their impact on system performance.
The TPA2008D2PWP is rated for a maximum power dissipation of 2.5 W. However, the actual power handling capability depends on the operating conditions, such as supply voltage, output power, and ambient temperature. TI provides a power dissipation calculator in the datasheet to help estimate the maximum power handling capability for a given application.
To ensure EMC with the TPA2008D2PWP, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, TI provides EMC guidelines and recommendations in the application note SLVAU73.
The recommended input and output coupling capacitor value for the TPA2008D2PWP depends on the specific application requirements and operating frequency. As a general guideline, TI recommends using a 1-10 μF capacitor for input coupling and a 10-100 nF capacitor for output coupling. However, the optimal capacitor value may need to be experimentally determined for a given application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2008D2PWP Overview

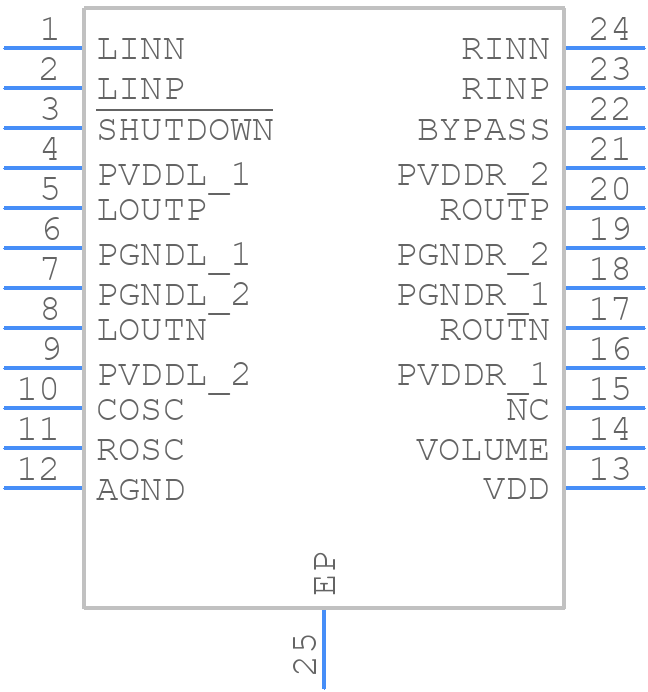

Use the download button to access the TPA2008D2PWP schematic symbol, PCB footprint, and 3D model.
