FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
28.5 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
8.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TPA3004D2PHPR Frequently Asked Questions (FAQs)
Texas Instruments recommends using a 10uF capacitor in parallel with a 100nF capacitor, both connected between the power supply pins (VCC and GND) to ensure stable operation.
To minimize electromagnetic interference (EMI) and ensure optimal performance, keep the power supply traces short and wide, use a solid ground plane, and place the amplifier close to the speaker. Also, avoid routing signals under the amplifier.
The maximum power dissipation of the TPA3004D2PHPR is 15W. However, this value can be affected by the ambient temperature, PCB design, and heat sinking. Ensure proper thermal management to prevent overheating.
Yes, the TPA3004D2PHPR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the power supply, speaker impedance, and thermal management to avoid overheating and ensure reliable operation.
Use a voltage regulator or a voltage supervisor to ensure the power supply voltage remains within the recommended range (8V to 26V). Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3004D2PHPR Overview

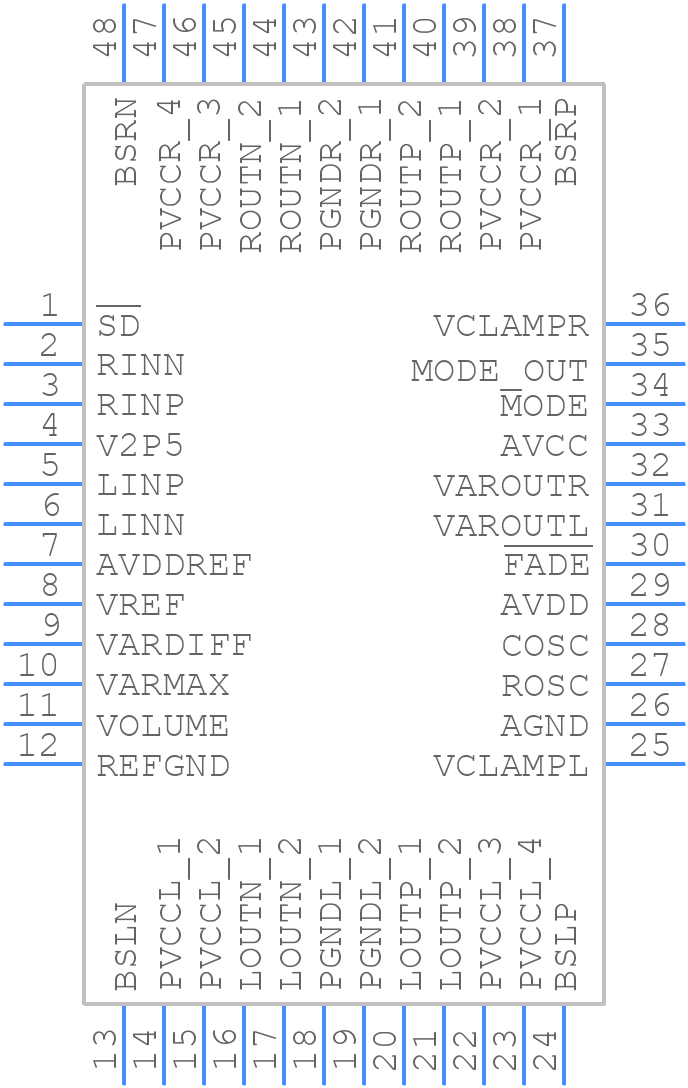

Use the download button to access the TPA3004D2PHPR schematic symbol, PCB footprint, and 3D model.
