SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
18 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA6010A4PWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout for the TPA6010A4PWPR in the application note SLVAU65. It suggests using a 4-layer PCB with a solid ground plane, and placing the device near the edge of the board to improve heat dissipation.
The gain setting for the TPA6010A4PWPR depends on the input signal level and the desired output power. TI provides a gain selection table in the datasheet, but engineers can also use the WEBENCH Audio Amplifier Designer tool to simulate and optimize the gain setting for their specific application.
The maximum power dissipation of the TPA6010A4PWPR is dependent on the ambient temperature and the thermal resistance of the PCB. Engineers can use the power dissipation calculation formula provided in the datasheet, taking into account the output power, supply voltage, and quiescent current.
To filter out noise and EMI, engineers can use a combination of passive components such as capacitors, inductors, and resistors, as well as active filtering techniques like common-mode filtering and differential-mode filtering. TI provides guidance on EMI filtering in the application note SLLA292.
TI provides a comprehensive test and measurement procedure for the TPA6010A4PWPR in the datasheet, including setup and configuration guidelines, as well as measurement techniques for parameters such as THD+N, frequency response, and power supply rejection ratio.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6010A4PWPR Overview

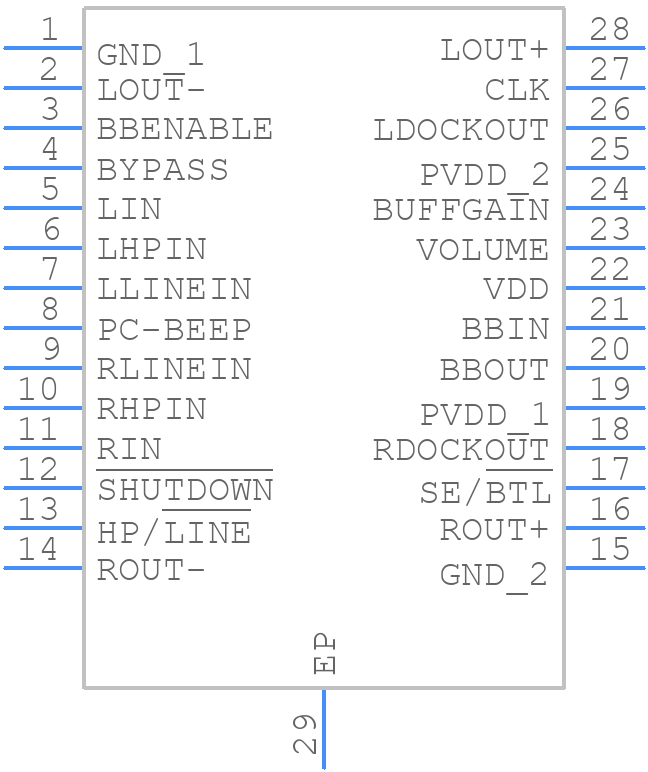

Use the download button to access the TPA6010A4PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA60,
or try a keyword search, such as Audio Control ICs
