SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
9 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA6011A4PWP Frequently Asked Questions (FAQs)
A good PCB layout is crucial for the TPA6011A4PWP. TI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, decoupling capacitors should be placed close to the device, and the power supply traces should be wide and short.
The gain setting depends on the specific application and the desired output power. The TPA6011A4PWP has a gain range of 20dB to 30dB. A higher gain setting will result in higher output power, but may also increase distortion and noise. A lower gain setting will result in lower output power, but may improve distortion and noise performance.
The maximum power dissipation of the TPA6011A4PWP is 2.5W. However, this value can be affected by the ambient temperature, PCB layout, and other factors. It's essential to ensure proper heat sinking and thermal management to prevent overheating and damage to the device.
Yes, the TPA6011A4PWP can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the power supply, PCB layout, and thermal management. TI provides a bridged amplifier application note (SLAA382) that provides guidance on how to implement a bridged configuration.
TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor as close as possible to the power supply pins of the TPA6011A4PWP. This helps to filter out noise and ripple on the power supply lines and ensures stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6011A4PWP Overview

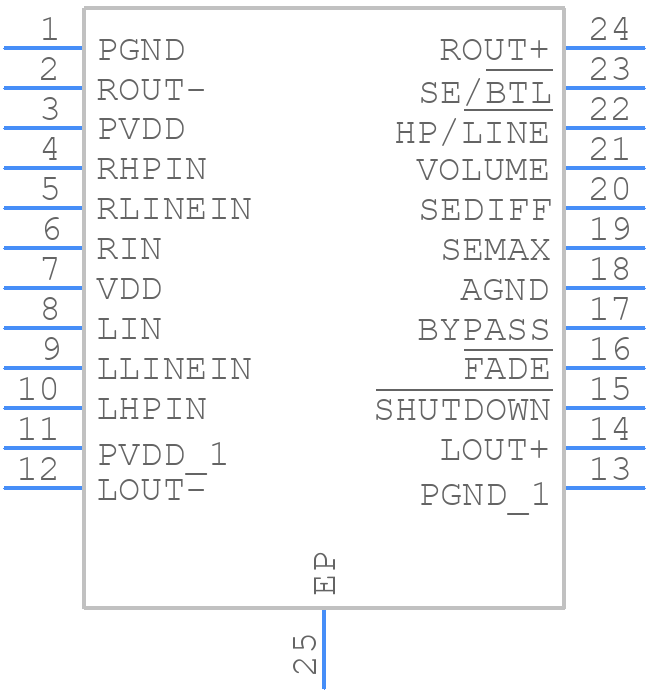

Use the download button to access the TPA6011A4PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA60,
or try a keyword search, such as Audio Control ICs
