SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
9 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA6011A4PWPR Frequently Asked Questions (FAQs)
A good PCB layout for the TPA6011A4PWPR involves keeping the audio signal traces away from the power supply and ground planes, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. Additionally, using a shielded cable for the audio input and output can help reduce EMI.
To ensure the TPA6011A4PWPR operates within its recommended operating conditions, make sure to provide a stable power supply voltage between 4.5V to 15V, keep the ambient temperature between -40°C to 85°C, and avoid exceeding the maximum power dissipation of 2.5W.
For effective thermal management, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the airflow around the device. Additionally, consider using thermal interface materials to improve heat transfer between the device and the heat sink.
To troubleshoot issues with the TPA6011A4PWPR, start by checking the power supply voltage and ensuring it is within the recommended range. Next, verify that the input signal is within the recommended amplitude and frequency range. Check for any signs of overheating, and ensure that the device is properly soldered and connected to the PCB.
While the TPA6011A4PWPR is designed for low-power audio applications, it is not suitable for high-power applications. If you need a higher power output, consider using a different amplifier IC, such as the TPA3116D2 or TPA3125D2, which are designed for higher power applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6011A4PWPR Overview

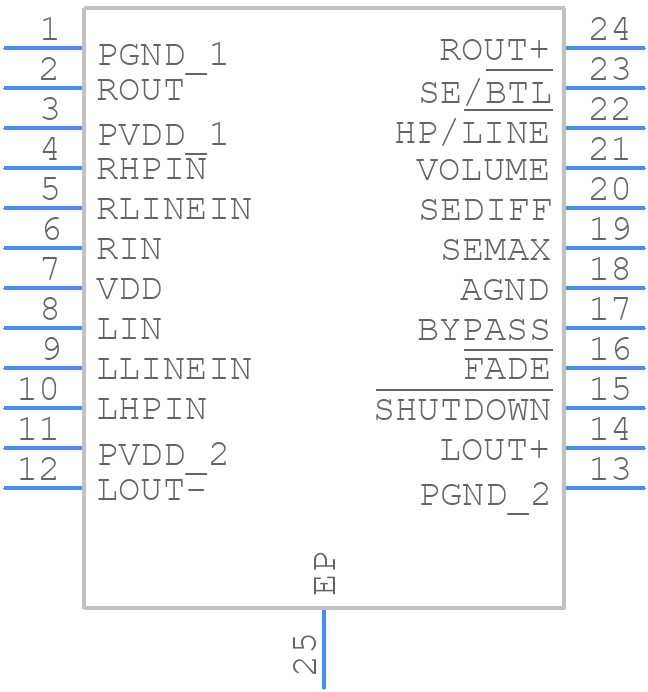

Use the download button to access the TPA6011A4PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA60,
or try a keyword search, such as Audio Control ICs
