SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Supply Current-Max:
9 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
TPA6013A4PWPR Frequently Asked Questions (FAQs)
A good PCB layout for the TPA6013A4PWPR involves keeping the audio signal traces short and away from the power supply traces, using a solid ground plane, and placing the decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
The gain setting depends on the input signal level and the desired output power. The TPA6013A4PWPR has a gain range of 6 dB to 30 dB. A higher gain setting can provide more output power, but may also increase noise and distortion. A lower gain setting can provide a cleaner signal, but may not provide enough output power. TI provides a gain calculation formula in the datasheet.
The maximum power dissipation of the TPA6013A4PWPR depends on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated at higher temperatures. TI provides a thermal derating curve in the datasheet.
To protect the TPA6013A4PWPR from overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods. The device has a built-in thermal shutdown feature that turns off the device if the junction temperature exceeds 150°C.
The recommended input coupling capacitor value for the TPA6013A4PWPR depends on the input signal frequency and amplitude. A general rule of thumb is to use a capacitor with a value of 1 μF to 10 μF. However, TI recommends using a capacitor with a value of 2.2 μF to 4.7 μF for most audio applications.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPA6013A4PWPR Overview

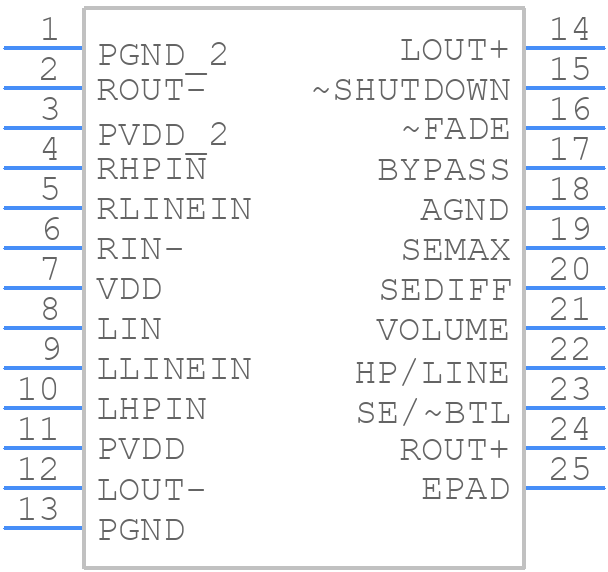

Use the download button to access the TPA6013A4PWPR schematic symbol, PCB footprint, and 3D model.
