Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout example and a thermal pad layout guide.
The gain setting of the TPA6021A4N depends on the specific application requirements. TI provides a gain calculation formula in the datasheet, which takes into account the input impedance, output impedance, and desired gain. Engineers can use this formula to determine the optimal gain setting for their application.
The maximum power dissipation of the TPA6021A4N is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at an ambient temperature of 25°C. However, this value can be derated based on the thermal resistance of the package and the ambient temperature.
The TPA6021A4N has built-in ESD protection, but additional protection measures can be taken to ensure the device is protected from ESD and overvoltage. TI recommends using a TVS diode or a zener diode to protect the device from overvoltage, and following proper ESD handling procedures during assembly and testing.
The recommended input and output coupling capacitor value depends on the specific application requirements and the frequency range of operation. TI recommends using a capacitor value between 1uF to 10uF for the input and output coupling capacitors, but the optimal value may vary depending on the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6021A4N Overview

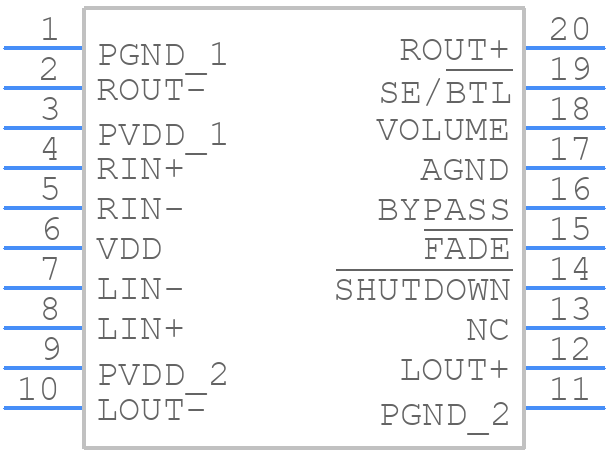

Use the download button to access the TPA6021A4N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA60,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
