- Part Number TPA6030A4PWPR
- Manufacturer Texas Instruments
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PWP (R-PDSO-G28)-
- Released Date Sep 7, 2021
- Last Modified Date Nov 30, 2023 6:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
TPA6030A4PWPR Details
-
Manufacturer Part Number:
TPA6030A4PWPR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SSOP
-
Pin Count:
28
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
TPA6030A4PWPR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, which includes a suggested component placement and routing guide to minimize electromagnetic interference (EMI) and ensure optimal performance.
-
The gain setting depends on the specific application and desired output power. The TPA6030A4PWPR has a gain range of 6 dB to 30 dB. Consult the datasheet for gain setting calculations and examples to determine the optimal gain for your specific use case.
-
The maximum power dissipation of the TPA6030A4PWPR is dependent on the ambient temperature and the thermal resistance of the PCB. Consult the datasheet for thermal resistance calculations and power dissipation guidelines to ensure safe operation.
-
Yes, the TPA6030A4PWPR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, power supply, and thermal management. Consult the datasheet and application notes for guidance on bridged configurations.
-
To minimize EMI, follow the recommended PCB layout and routing guidelines in the datasheet. Additionally, use proper shielding, filtering, and decoupling to reduce electromagnetic radiation and ensure compliance with regulatory requirements.
Trust Checks
Community Provided
System Verified
Community Approved
TPA6030A4PWPR Overview

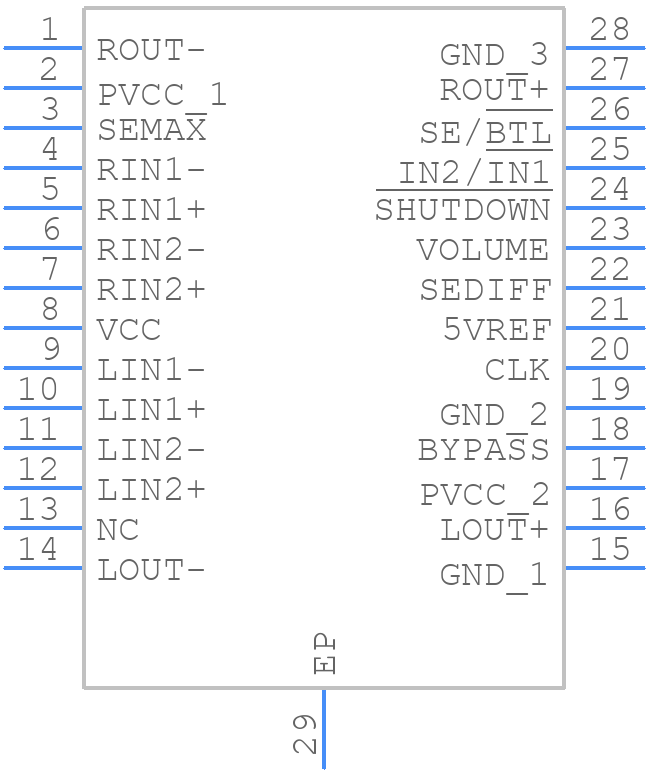

Use the download button to access the TPA6030A4PWPR schematic symbol, PCB footprint, and 3D model.
