Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout example and a thermal design guide for the TPA6140A2YFFR.
The gain setting of the TPA6140A2YFFR depends on the specific application requirements. TI provides a gain calculation formula in the datasheet, which takes into account the input signal level, output power, and desired gain. Engineers can use this formula to determine the optimal gain setting for their application.
The maximum power dissipation of the TPA6140A2YFFR is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a power dissipation calculation formula in the datasheet, which takes into account these factors. Engineers can use this formula to determine the maximum power dissipation for their specific application.
The TPA6140A2YFFR has built-in ESD protection, but additional protection measures can be taken to ensure robustness. TI recommends using ESD protection diodes, such as the TI TPDxx series, and overvoltage protection devices, such as the TI TPSxxxx series, to protect the device from ESD and overvoltage events.
The recommended input capacitor value for the TPA6140A2YFFR depends on the specific application requirements, such as the input signal frequency and amplitude. TI recommends using a capacitor value between 1uF to 10uF, with a voltage rating that matches the input signal voltage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPA6140A2YFFR Overview

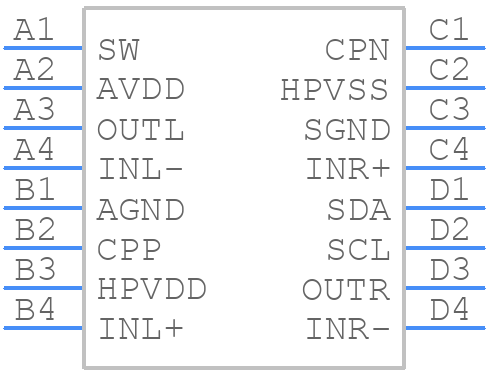

Use the download button to access the TPA6140A2YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
