TPC8408,LQ(S - Toshiba

Description: MOSFET N and P Ch 40V FET 6.1A 1.5W 850pF

Download TPC8408,LQ(S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

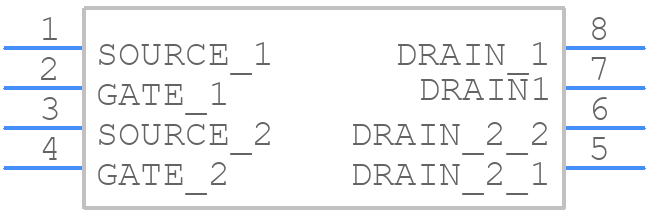

TPC8408,LQ(S - Toshiba - PCB symbol
click to zoom
PCB Footprints
TPC8408,LQ(S - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP8
click to zoom
3D Models
TPC8408,LQ(S - Toshiba - 3D model - Small Outline Packages - SOP8
click to zoom

TPC8408,LQ(S Details

  • Manufacturer Part Number:

    TPC8408,LQ(S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Drain Current-Max (ID):

    6.1 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    2.2 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)
