TPD2E001DRSR - Texas Instruments

Description: TPD2E001 LOW-CAPACITANCE 2-CHANNEL ±15-kV ESD-PROTECTION ARRAY FOR HIGH-SPEED DATA INTERFACES

Download TPD2E001DRSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

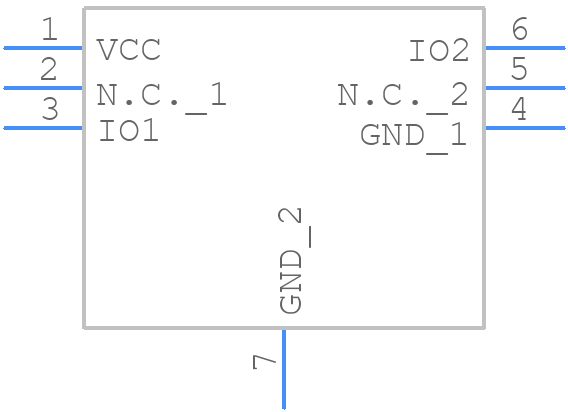

TPD2E001DRSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD2E001DRSR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRS (S-PWSON-N6)
click to zoom
3D Models
TPD2E001DRSR - Texas Instruments - 3D model - Small Outline No-lead - DRS (S-PWSON-N6)
click to zoom

TPD2E001DRSR Details

  • Manufacturer Part Number:

    TPD2E001DRSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Breakdown Voltage-Min:

    11 V

  • Clamping Voltage-Max:

    16 V

  • Configuration:

    SINGLE, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    0.95 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Non-rep Peak Rev Power Dis-Max:

    100 W

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5.5 V

  • Reverse Current-Max:

    0.001 µA

  • Reverse Test Voltage:

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TPD2E001DRSR Frequently Asked Questions (FAQs)

  • A good PCB layout for TPD2E001DRSR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the protected IC. Additionally, it's recommended to use a common ground point for the device and the protected IC.
  • The recommended capacitor value for the VCC pin of TPD2E001DRSR is 1-10uF, depending on the specific application and noise requirements. A larger capacitor value can help filter out noise, but may increase the startup time of the device.
  • The TPD2E001DRSR can handle surge currents up to 100A, but this value may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
  • The TPD2E001DRSR is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's recommended to consult the datasheet and application notes for more information on temperature-related specifications.
  • To ensure proper power-on and power-off of TPD2E001DRSR, it's recommended to follow the power-up and power-down sequencing guidelines outlined in the datasheet and application notes. This includes ensuring that the VCC pin is powered on before the protected IC, and that the device is properly reset during power-on.
