TPD2E001DRST-NM - Texas Instruments

Description: Low-Capacitance 2-Channel +/-15kV ESD Protection Array for High-Speed Data Interfaces

Download TPD2E001DRST-NM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

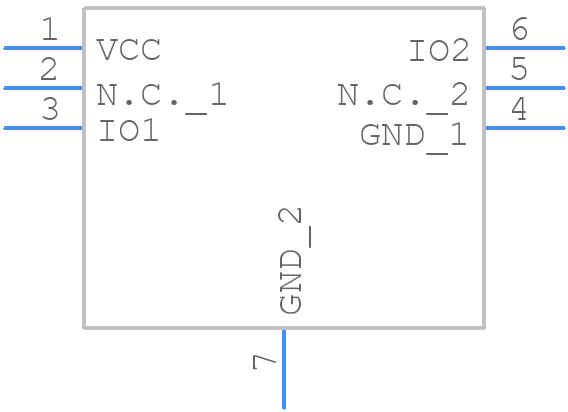

TPD2E001DRST-NM - Texas Instruments - PCB symbol
