TPD4165K - Toshiba

Description: 600 V/3 A 3-phase Brushless DC Motor Driver IC built-in Power Device, HDIP30

Download TPD4165K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

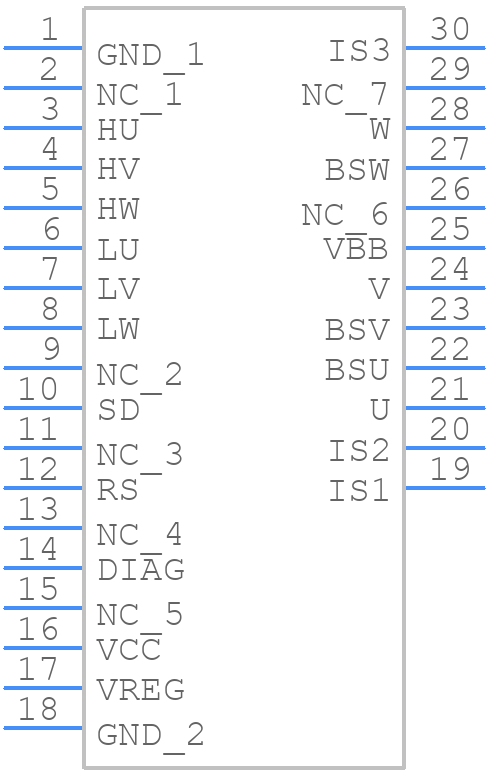

TPD4165K - Toshiba - PCB symbol
click to zoom
PCB Footprints

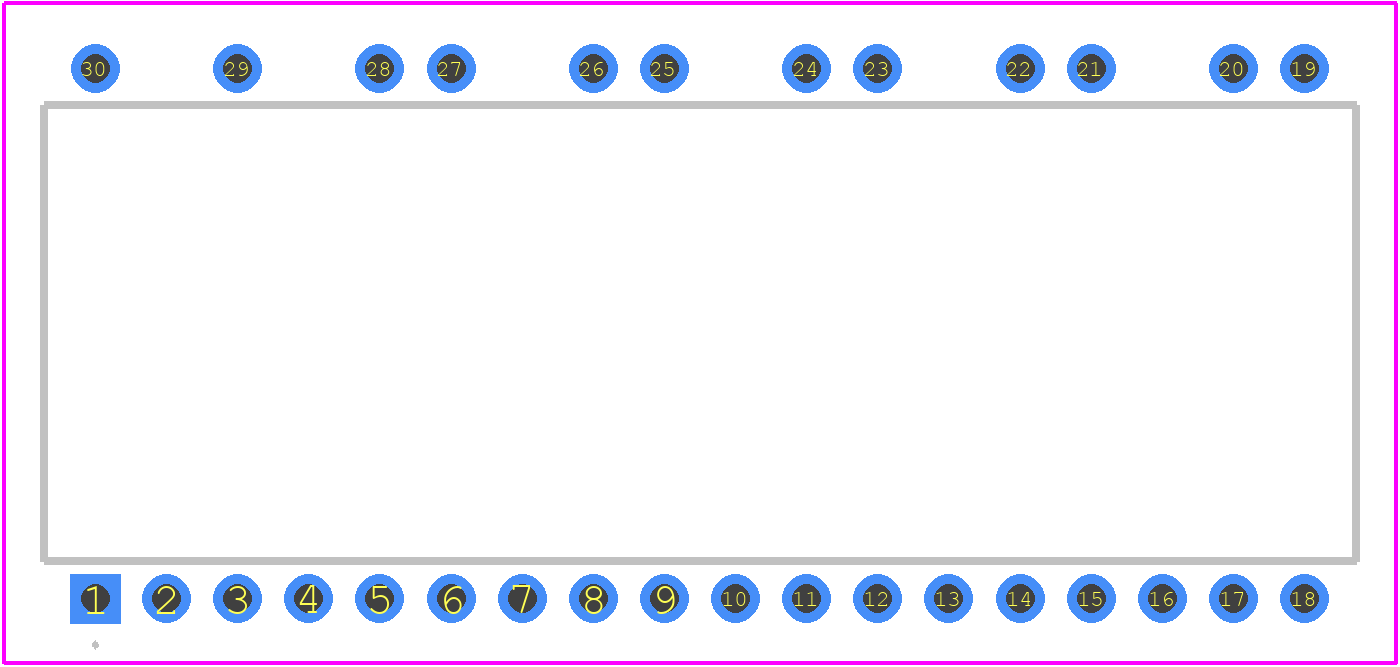

TPD4165K - Toshiba PCB footprint - Other - Other - P-HDIP30-1233-1.78-001_2026-1
click to zoom
3D Models
TPD4165K - Toshiba - 3D model - Other - P-HDIP30-1233-1.78-001_2026-1
click to zoom

TPD4165K Details

  • Manufacturer Part Number:

    TPD4165K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPD4165K Overview

Use the download button to access the TPD4165K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD41, or try a keyword search, such as Motion Control Electronics
