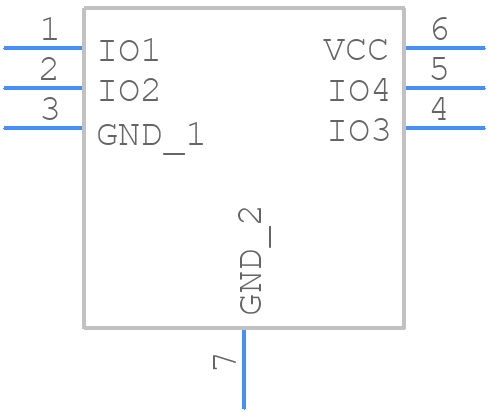

TPD4E001DRSR - Texas Instruments

TPD4E001DRSR Details

• Manufacturer Part Number:

  TPD4E001DRSR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  6

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Breakdown Voltage-Min:

  11 V

• Clamping Voltage-Max:

  25 V

• Configuration:

  SINGLE, 4 CHANNEL

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• Forward Voltage-Max (VF):

  0.95 V

• JESD-30 Code:

  S-PDSO-N6

• JESD-609 Code:

  e4

• Moisture Sensitivity Level:

  2

• Non-rep Peak Rev Power Dis-Max:

  100 W

• Number of Elements:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Qualification Status:

  Not Qualified

• Reference Standard:

  IEC-61000-4-2, 4-5

• Rep Pk Reverse Voltage-Max:

  5.5 V

• Reverse Current-Max:

  0.001 µA

• Reverse Test Voltage:

  5.5 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
