TPD4F003DQDR - Texas Instruments

Description: Texas Instruments, EMI Filter IC 200MHz WSON SMD, Flat Contact Termination, 2.6 x 1.45 x 0.75mm

Download TPD4F003DQDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

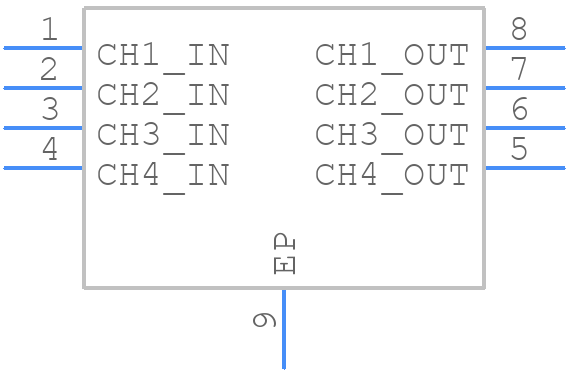

TPD4F003DQDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD4F003DQDR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DQD (R-PWSON-N8)
click to zoom
3D Models
TPD4F003DQDR - Texas Instruments - 3D model - Small Outline No-lead - DQD (R-PWSON-N8)
click to zoom

TPD4F003DQDR Details

  • Manufacturer Part Number:

    TPD4F003DQDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Approvals:

    IEC

  • Capacitance:

    8.5 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.8 mm

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5.5 V

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Width:

    1.45 mm

TPD4F003DQDR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPD4F003DQDR is -40°C to 125°C.
  • To ensure EMC, follow proper PCB layout guidelines, use a common mode choke, and add EMI filters as needed. Additionally, ensure that the device is properly decoupled and that the power supply is clean.
  • The recommended PCB layout for the TPD4F003DQDR includes a solid ground plane, short and wide traces for power and ground, and a common mode choke for EMI filtering.
  • To handle ESD protection, use a TVS diode or a transient voltage suppressor, and ensure that the device is handled and stored in an ESD-safe environment.
  • The maximum current rating for the TPD4F003DQDR is 3.5 A per channel.
