TPD4F202YFUR - Texas Instruments

Description: Four-Channel EMI Filter With ESD Protection for LCD Display

Download TPD4F202YFUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

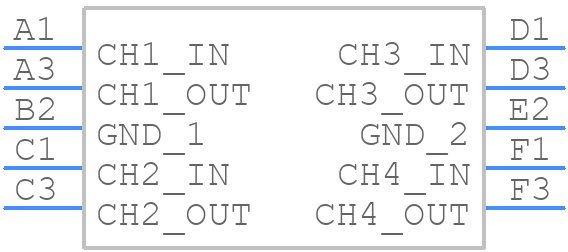

TPD4F202YFUR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD4F202YFUR - Texas Instruments PCB footprint - Other - Other - YFU-N10
click to zoom
3D Models
TPD4F202YFUR - Texas Instruments - 3D model - Other - YFU-N10
click to zoom

TPD4F202YFUR Details

  • Manufacturer Part Number:

    TPD4F202YFUR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    PI-TYPE CIRCUIT

  • Approvals:

    IEC

  • Capacitance:

    15 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.32 mm

  • JESD-609 Code:

    e1

  • Length:

    1.59 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5.5 V

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Width:

    1.083 mm

TPD4F202YFUR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPD4F202YFUR is -40°C to 125°C.
  • To ensure ESD protection with the TPD4F202YFUR, it is recommended to use a human body model (HBM) of ±2 kV, a charged device model (CDM) of ±500 V, and an IEC 61000-4-2 of ±8 kV.
  • The maximum current rating for the TPD4F202YFUR is 2 A per channel.
  • Yes, the TPD4F202YFUR is suitable for high-speed data lines, such as USB, HDMI, and SATA, due to its low capacitance and high bandwidth.
  • For optimal performance with the TPD4F202YFUR, it is recommended to use a symmetrical layout, keep the signal traces short and away from noise sources, and use a solid ground plane.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPD4F202YFUR Overview

Use the download button to access the TPD4F202YFUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD4F, or try a keyword search, such as Data Line Filters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
