TPD6E001RSERG4 - Texas Instruments

Description: ESD Suppressors / TVS Diodes Low-Cap 6Ch ESD Protection Array 5V 10UQFN

Download TPD6E001RSERG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

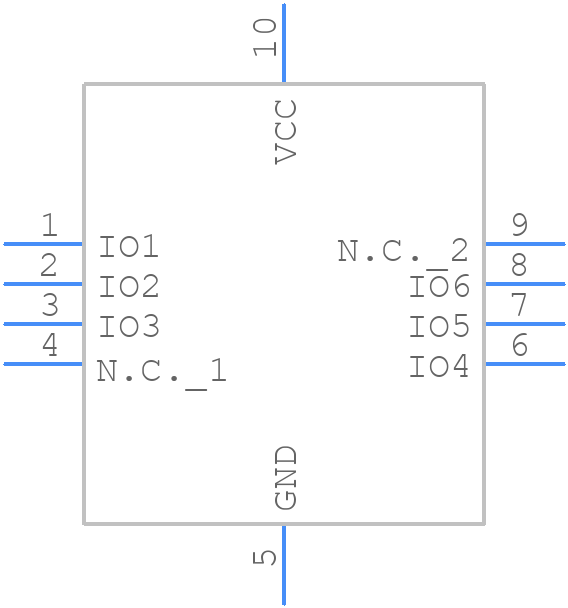

Symbol
TPD6E001RSERG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD6E001RSERG4 - Texas Instruments PCB footprint - Other - Other - RSE0010A_H=0.6mm_2021
click to zoom
3D Models
TPD6E001RSERG4 - Texas Instruments - 3D model - Other - RSE0010A_H=0.6mm_2021
click to zoom

TPD6E001RSERG4 Details

  • Manufacturer Part Number:

    TPD6E001RSERG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Breakdown Voltage-Min:

    11 V

  • Clamping Voltage-Max:

    15 V

  • Configuration:

    SINGLE, 6 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MO-228UEFD

  • JESD-30 Code:

    R-PQFP-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    100 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5.5 V

  • Reverse Current-Max:

    0.001 µA

  • Reverse Test Voltage:

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

TPD6E001RSERG4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPD6E001RSERG4 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the protected IC. Additionally, it's recommended to use a common ground point for the device and the protected IC.
  • The recommended capacitor value for the TPD6E001RSERG4 is 1nF to 10nF. The capacitor value should be chosen based on the specific application requirements, such as the frequency of the signal being protected and the desired level of filtering.
  • The TPD6E001RSERG4 has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, the TPD6E001RSERG4 is suitable for ESD protection in high-speed data lines. It has a low capacitance of 0.5pF and a low clamping voltage of 6V, making it suitable for high-speed data lines such as USB, HDMI, and Ethernet.
  • To ensure proper soldering of the TPD6E001RSERG4, use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the device.
