TPD6F002QDSVRQ1 - Texas Instruments

Description: Automotive 6-Channel EMI Filter for LCD Display Application

Download TPD6F002QDSVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

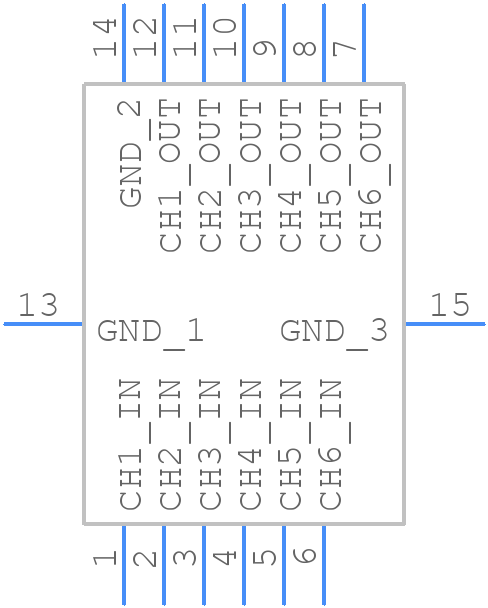

TPD6F002QDSVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD6F002QDSVRQ1 - Texas Instruments PCB footprint - Other - Other - TPD6F002QDSVRQ1-2
click to zoom
3D Models
TPD6F002QDSVRQ1 - Texas Instruments - 3D model - Other - TPD6F002QDSVRQ1-2
click to zoom

TPD6F002QDSVRQ1 Details

  • Manufacturer Part Number:

    TPD6F002QDSVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    AEC-Q101; PI-TYPE CIRCUIT

  • Approvals:

    IEC

  • Capacitance:

    17 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.8 mm

  • Insertion Loss-Max:

    -30 dB

  • JESD-609 Code:

    e4

  • Length:

    3.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Rated Voltage:

    5.5 V

  • Screening Level:

    AEC-Q101

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    1.35 mm

TPD6F002QDSVRQ1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPD6F002QDSVRQ1 is -40°C to 125°C.
  • To ensure ESD protection, handle the device in an ESD-protected environment, wear an ESD strap, and use ESD-safe packaging and materials.
  • To minimize EMI, use a multi-layer PCB with a solid ground plane, keep signal traces short and away from the edge of the board, and use shielding or filtering if necessary.
  • Yes, the TPD6F002QDSVRQ1 is qualified for automotive and high-reliability applications, but additional testing and validation may be required.
  • Use a logic analyzer or oscilloscope to monitor the device's signals, check the power supply and signal integrity, and consult the datasheet and application notes for troubleshooting guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPD6F002QDSVRQ1 Overview

Use the download button to access the TPD6F002QDSVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD6F, or try a keyword search, such as Data Line Filters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
