TPD6F003DQDR - Texas Instruments

Description: EMI FILTERS WITH INTEGRATED ESD PROTECTION

Download TPD6F003DQDR Model

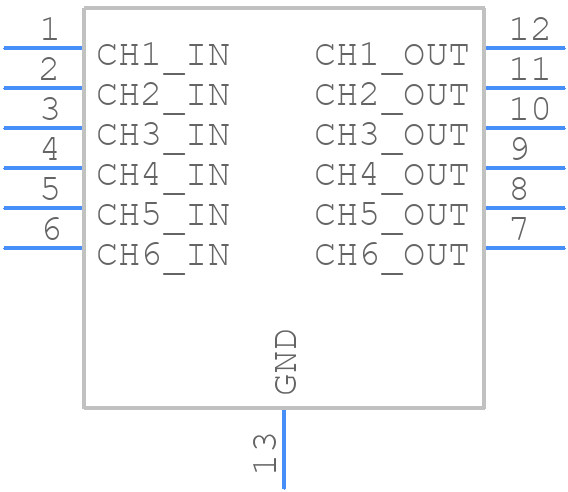

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TPD6F003DQDR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - dqd-
click to zoom
3D Models
TPD6F003DQDR - Texas Instruments  - 3D model - Small Outline No-lead - dqd-
click to zoom

TPD6F003DQDR Details

  • Manufacturer Part Number:

    TPD6F003DQDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Approvals:

    IEC

  • Capacitance:

    8.5 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.8 mm

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5.5 V

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Width:

    1.35 mm

TPD6F003DQDR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPD6F003DQDR is -40°C to 125°C.
  • To ensure ESD protection with the TPD6F003DQDR, it is recommended to use a TVS diode or a transient voltage suppressor in parallel with the device, and to follow proper PCB layout and design guidelines to minimize ESD susceptibility.
  • The TPD6F003DQDR supports data rates up to 3.2 Gbps.
  • Yes, the TPD6F003DQDR is designed for high-speed applications and can support data rates up to 3.2 Gbps, making it suitable for use in high-speed interfaces such as HDMI, DisplayPort, and USB 3.0.
  • To ensure proper power sequencing with the TPD6F003DQDR, it is recommended to power up the device after the power supply has reached a stable voltage, and to follow the recommended power-up sequence outlined in the datasheet.
