TPF141-TR - 3Peak Incorporated

Description: Video Buffer, SOT23-6

Download TPF141-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

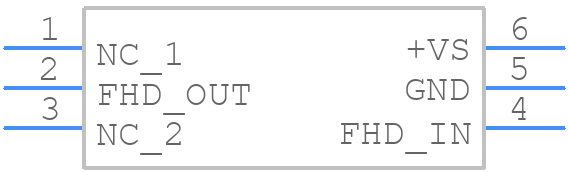

TPF141-TR - 3Peak Incorporated - PCB symbol
click to zoom
PCB Footprints
TPF141-TR - 3Peak Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT23-6
click to zoom
3D Models
TPF141-TR - 3Peak Incorporated - 3D model - SOT23 (6-Pin) - SOT23-6
click to zoom

TPF141-TR Details

  • Manufacturer Part Number:

    TPF141-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOT-23, 6 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    3peak Incorporated

  • Bandwidth-Nom:

    71500 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Harmonic Distortion:

    0.15%

  • JESD-30 Code:

    R-PDSO-G6

  • Length:

    2.92 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

TPF141-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal interface material.
  • The maximum allowable voltage swing on the input pins is ±5V, exceeding which may cause damage to the device. It's recommended to use input voltage clamping or limiting circuits to prevent overvoltage conditions.
  • Yes, the TPF141-TR can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent high-frequency noise and voltage spikes from affecting its operation.
  • The recommended ESD protection method for the TPF141-TR involves using a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection IC, such as the 3peak ESD100, to prevent damage from electrostatic discharge events.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPF141-TR Overview

Use the download button to access the TPF141-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPF14, or try a keyword search, such as Audio/Video Amplifiers
