TPH11006NL,LQ - Toshiba

Description: MOSFET U-MOSVIII-H 60V 40A 23nC MOSFET

Download TPH11006NL,LQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

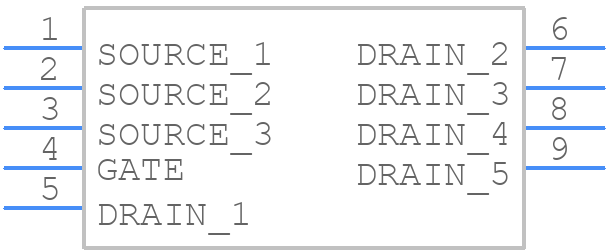

TPH11006NL,LQ - Toshiba - PCB symbol
click to zoom
PCB Footprints
TPH11006NL,LQ - Toshiba PCB footprint - Other - Other - TPH11006NL,LQ-2
click to zoom
3D Models
TPH11006NL,LQ - Toshiba - 3D model - Other - TPH11006NL,LQ-2
click to zoom

TPH11006NL,LQ Details

  • Manufacturer Part Number:

    TPH11006NL,LQ

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • Avalanche Energy Rating (Eas):

    33 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.017 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    50 pF

  • JESD-30 Code:

    S-PDSO-F8

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    34 W

  • Pulsed Drain Current-Max (IDM):

    81 A

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
