A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad to the ground plane. Additionally, it's recommended to have a large copper area on the top layer to dissipate heat.
To ensure the device is properly biased, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, ensure that the input and output capacitors are properly selected and placed close to the device to minimize parasitic inductance.
Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's essential to ensure proper thermal management and heat dissipation to prevent overheating.
To troubleshoot issues with the device, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly biased and that the input and output capacitors are properly selected and placed. If the issue persists, consult the datasheet and application notes for guidance.
Yes, when designing with the TPH1110FNH,L1Q, it's essential to consider EMI/EMC guidelines to minimize electromagnetic interference. Ensure proper shielding, grounding, and decoupling to prevent electromagnetic radiation and interference.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPH1110FNH,L1Q Overview

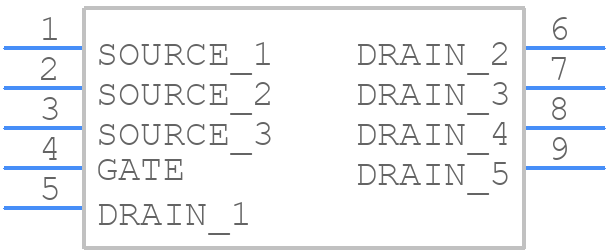

Use the download button to access the TPH1110FNH,L1Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPH11,
or try a keyword search, such as Power Field-Effect Transistors
