The recommended land pattern for the TPH4R10ANL,L1Q can be found in the Toshiba datasheet or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
Proper thermal management is crucial for the TPH4R10ANL,L1Q. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB layout. Follow the thermal design guidelines in the datasheet and consider using thermal simulation tools to optimize your design.
The TPH4R10ANL,L1Q is a sensitive component and requires proper ESD protection during handling and assembly. Follow standard ESD precautions, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging. Ensure that your assembly line and storage facilities are ESD-compliant.
The TPH4R10ANL,L1Q is a commercial-grade component, but it may not meet the specific requirements for high-reliability or automotive applications. Check the component's qualification and certification for your specific industry or application. You may need to consider a different component or consult with Toshiba's technical support team.
To troubleshoot issues with the TPH4R10ANL,L1Q, start by consulting the datasheet and application notes. Check for proper PCB layout, thermal management, and component handling. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. If needed, contact Toshiba's technical support team for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPH4R10ANL,L1Q Overview

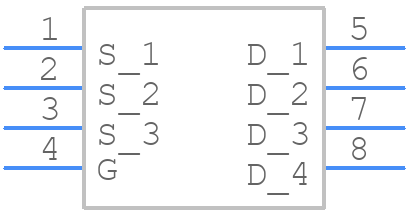

Use the download button to access the TPH4R10ANL,L1Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPH4R,
or try a keyword search, such as Power Field-Effect Transistors
