TPI8011NRL - STMicroelectronics

Description: STMicroelectronics TPI8011NRL, Dual-Element Bi-Directional TVS Diode, 8-Pin SOIC

Download TPI8011NRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

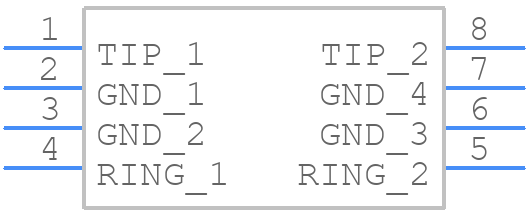

TPI8011NRL - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TPI8011NRL - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8.
click to zoom
3D Models
TPI8011NRL - STMicroelectronics - 3D model - Small Outline Packages - SO-8.
click to zoom

TPI8011NRL Details

  • Manufacturer Part Number:

    TPI8011NRL

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Breakover Voltage-Max:

    110 V

  • Configuration:

    DELTA CONNECTED, 3 ELEMENTS

  • JESD-30 Code:

    R-PDSO-G8

  • Non-Repetitive Pk On-state Cur:

    8 A

  • Number of Elements:

    3

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Trigger Device Type:

    SILICON SURGE PROTECTOR

TPI8011NRL Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation at high temperatures, it is recommended to follow the recommended operating conditions, use a heat sink if necessary, and ensure good thermal conductivity between the device and the heat sink.
  • The maximum allowed voltage on the input pins is 6V, exceeding which may cause damage to the device.
  • Yes, the TPI8011NRL is designed to operate in a wide range of environmental conditions, including high humidity. However, it is recommended to follow proper PCB design and assembly guidelines to prevent moisture-related issues.
  • To troubleshoot issues with the TPI8011NRL, start by checking the power supply, input signals, and output loads. Use oscilloscopes and logic analyzers to debug the issue. Consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPI8011NRL Overview

Use the download button to access the TPI8011NRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPI80, or try a keyword search, such as Silicon Surge Protectors
