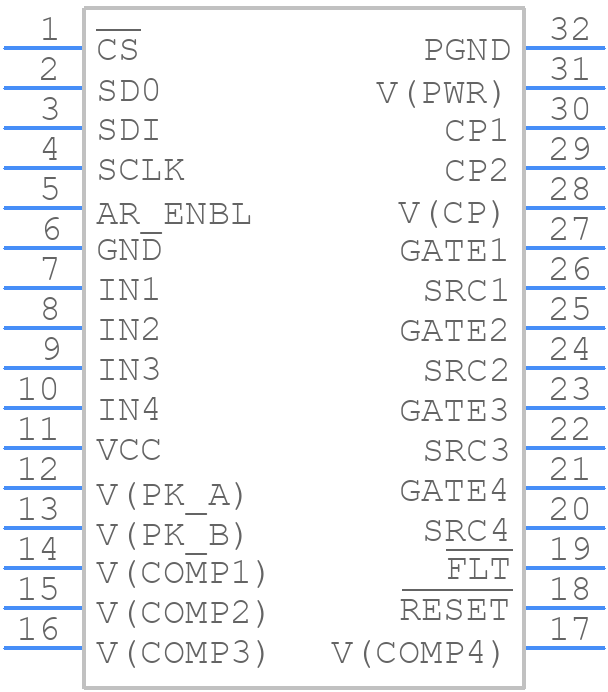

TPIC44H01DAR - Texas Instruments

TPIC44H01DAR Details

• Manufacturer Part Number:

  TPIC44H01DAR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP, TSSOP32,.3

• Pin Count:

  32

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• High Side Driver:

  YES

• Input Characteristics:

  GATED SCHMITT TRIGGER

• Interface IC Type:

  BUFFER OR INVERTER BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G32

• JESD-609 Code:

  e4

• Length:

  11 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  4

• Number of Functions:

  4

• Number of Terminals:

  32

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Current-Max:

  0.004 A

• Output Peak Current Limit-Nom:

  0.004 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP32,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  24 V

• Supply Voltage-Min:

  8 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  24 V

• Supply Voltage1-Min:

  8 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  5 µs

• Turn-on Time:

  5 µs

• Width:

  6.1 mm
