The internal clamp diodes are rated for a maximum current of 1A, but this is not explicitly stated in the datasheet. It's recommended to consult the application notes or contact TI support for more information.
To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines, such as providing adequate heat sinking and minimizing thermal resistance. Additionally, consider using thermal simulation tools to estimate junction temperatures and ensure the device stays within its recommended operating range.
For optimal performance, it's recommended to follow a 4-layer PCB stackup with a solid ground plane, and to keep the high-current paths as short and wide as possible. Additionally, ensure that the device is placed near the power source and that the input and output traces are well-separated to minimize EMI and noise coupling.
While the TPIC44L02DB is a robust device, it's not specifically designed for high-reliability or automotive applications. For such applications, it's recommended to consider devices with higher qualification levels, such as AEC-Q100 or ISO 26262, and to consult with TI's automotive support team for guidance on device selection and system design.
To troubleshoot issues with the device not turning on or not switching properly, start by verifying the input voltage and current, and ensuring that the enable pin is properly biased. Check for any signs of overheating, and verify that the device is properly soldered and connected to the PCB. If issues persist, consider using a logic analyzer or oscilloscope to debug the device's internal state and switching behavior.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPIC44L02DB Overview

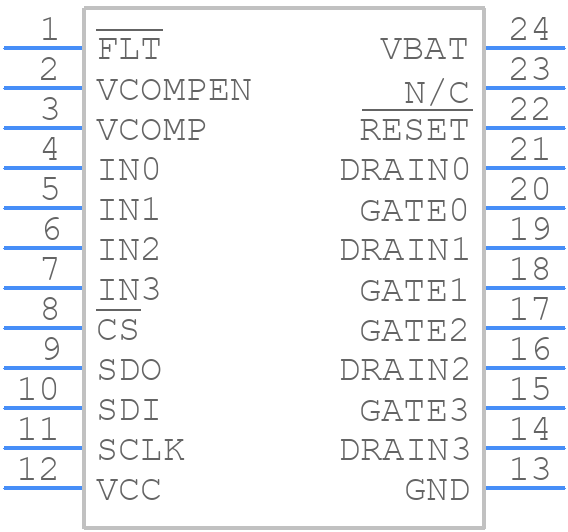

Use the download button to access the TPIC44L02DB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPIC4,
or try a keyword search, such as MOSFET Drivers
