- Part Number TPIC6259DWG4
- Manufacturer Texas Instruments
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW0020A
- Released Date May 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TPIC6259DWG4 Details
-
Manufacturer Part Number:
TPIC6259DWG4
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
20
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
TPIC6259DWG4 Frequently Asked Questions (FAQs)
-
The maximum current rating of the TPIC6259DWG4 is 1.5A per channel, with a total current limit of 3A for all channels combined.
-
To ensure proper thermal management, it is recommended to provide a heat sink or thermal pad on the exposed pad of the device, and to keep the ambient temperature below 85°C. Additionally, reducing the power dissipation by minimizing the voltage drop across the device can also help.
-
The minimum input voltage required for the TPIC6259DWG4 to operate is 4.5V, although it is recommended to use a minimum of 5V for optimal performance.
-
Yes, the TPIC6259DWG4 can be used as a high-side switch, but it requires an external bootstrap diode and capacitor to ensure proper operation. Additionally, the input voltage must be higher than the output voltage by at least 1.5V.
-
To protect the TPIC6259DWG4 from overvoltage and undervoltage conditions, it is recommended to use external voltage protection devices such as TVS diodes or voltage regulators. Additionally, the device has built-in overcurrent protection and thermal shutdown features to prevent damage from excessive current or temperature.
Trust Checks
Community Provided
System Verified
Community Approved
TPIC6259DWG4 Overview

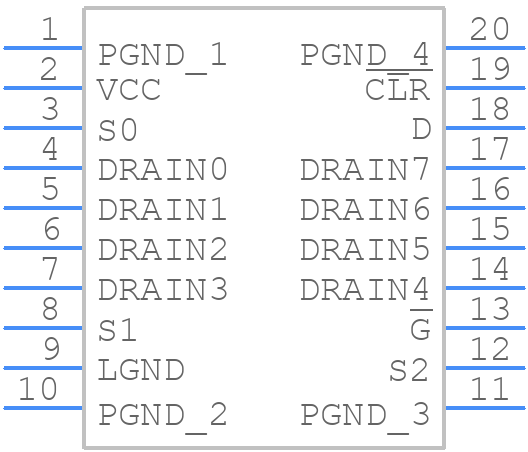

Use the download button to access the TPIC6259DWG4 schematic symbol, PCB footprint, and 3D model.
