Please enter a minimum 3 letters or numbers
Technical Content
Part Image

TPIC6273DWRG4 - Texas Instruments

Description: Latches OCTAL D-TYPE LATCH

Download TPIC6273DWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

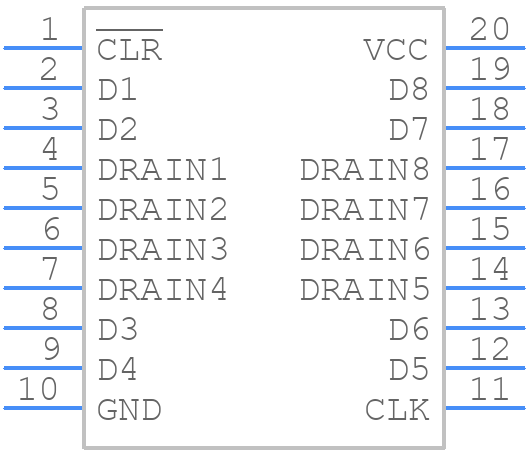

TPIC6273DWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPIC6273DWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G20)
click to zoom
3D Models
TPIC6273DWRG4 - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G20)
click to zoom

TPIC6273DWRG4 Details

  • Manufacturer Part Number:

    TPIC6273DWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LATCH BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.25 A

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.15 µs

  • Turn-on Time:

    0.625 µs

  • Width:

    7.5 mm

TPIC6273DWRG4 Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPIC6273DWRG4 is 1.5A per channel, with a total current rating of 3A for all channels combined.
  • To ensure reliability in high-temperature applications, it is recommended to follow proper thermal design and layout guidelines, including providing adequate heat sinking and thermal management. Additionally, operating the device within its recommended temperature range and avoiding overheating can help prevent reliability issues.
  • The TPIC6273DWRG4 is rated for a maximum voltage of 40V. While it can be used in high-voltage applications, it is essential to ensure that the device is operated within its recommended voltage range to prevent damage or malfunction.
  • To troubleshoot issues with the TPIC6273DWRG4, start by verifying the device's pin connections and ensuring that the power supply voltage is within the recommended range. Check for any signs of overheating, and verify that the device is operated within its recommended temperature range. If issues persist, consult the datasheet and application notes for guidance, or contact Texas Instruments' technical support for further assistance.
  • The TPIC6273DWRG4 is designed for low-frequency applications, and its performance may degrade at high frequencies. While it can be used in high-frequency applications, it is essential to evaluate the device's performance and ensure that it meets the specific requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPIC6273DWRG4 Overview

Use the download button to access the TPIC6273DWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPIC6, or try a keyword search, such as Peripheral Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TPIC6273DWRG4

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

TPIC6273DWRG4 Alternates

Showing results

Image Part Number Model
Part Image TPIC6273DWG4 Texas Instruments

Latch Based Peripheral Driver, 8 Driver, 2A, PDSO20
Part Image TPIC6273DWR Texas Instruments

Latch Based Peripheral Driver, 8 Driver, 2A, PDSO20
