PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT
Count Direction:
RIGHT
Family:
6A
JESD-30 Code:
R-PDSO-G24
JESD-609 Code:
e4
Length:
15.4 mm
Load Capacitance (CL):
30 pF
Logic IC Type:
SERIAL IN PARALLEL OUT
Max Frequency@Nom-Sup:
10000000 Hz
Moisture Sensitivity Level:
1
Number of Bits:
8
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-DRAIN
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
5 mA
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trigger Type:
POSITIVE EDGE
Width:
7.5 mm
fmax-Min:
10 MHz
TPIC6A596DWG4 Frequently Asked Questions (FAQs)
The maximum operating frequency of the TPIC6A596DWG4 is 100 kHz, but it can be operated at higher frequencies with reduced output current.
To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet, and to ensure good thermal management and heat sinking.
To minimize EMI, it is recommended to follow good PCB design practices, such as using a solid ground plane, keeping the power traces short and wide, and using shielding and filtering components as necessary. Additionally, the datasheet provides specific layout recommendations for the TPIC6A596DWG4.
Yes, the TPIC6A596DWG4 can be used in applications with high inductive loads, but it is recommended to add external freewheeling diodes and snubber circuits to protect the device from back-EMF and voltage spikes.
To protect the TPIC6A596DWG4 from overvoltage and overcurrent conditions, it is recommended to add external overvoltage protection (OVP) and overcurrent protection (OCP) circuits, such as zener diodes and current-sensing resistors, and to use a fuse or circuit breaker to disconnect the power supply in case of a fault.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPIC6A596DWG4 Overview

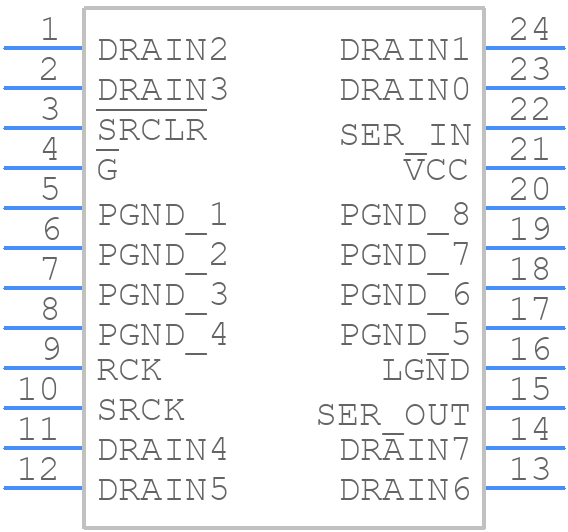

Use the download button to access the TPIC6A596DWG4 schematic symbol, PCB footprint, and 3D model.
