TPIC7218QPFPRQ1 - Texas Instruments

Description: Automotive Catalog Power Controller and Sensor Interface

Download TPIC7218QPFPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPIC7218QPFPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

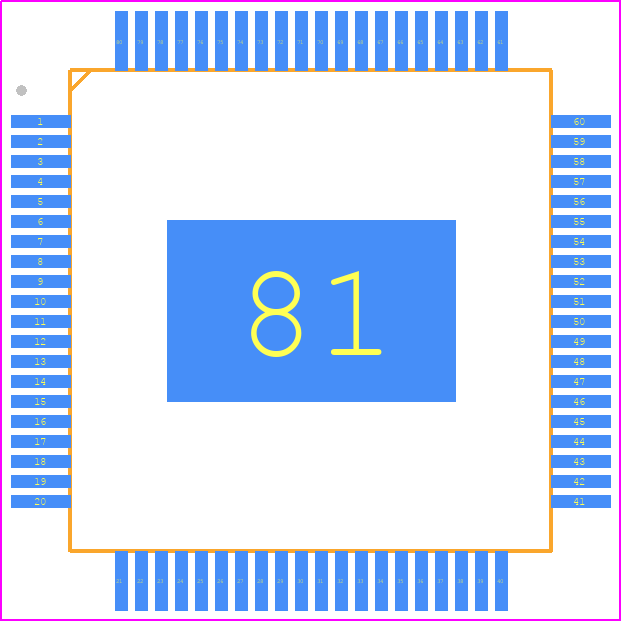

TPIC7218QPFPRQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFP80-1
click to zoom
3D Models
TPIC7218QPFPRQ1 - Texas Instruments - 3D model - Quad Flat Packages - PFP80-1
click to zoom

TPIC7218QPFPRQ1 Details

  • Manufacturer Part Number:

    TPIC7218QPFPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    80

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e4

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP80,.55SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

TPIC7218QPFPRQ1 Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPIC7218QPFPRQ1 is 1.5A per channel, with a total current rating of 3A for all channels combined.
  • To ensure proper thermal management, it is recommended to provide a heat sink or thermal pad to dissipate heat, and to keep the device away from other heat sources. The device's thermal pad should be connected to a copper plane on the PCB to improve heat dissipation.
  • The recommended PCB layout for the TPIC7218QPFPRQ1 involves keeping the high-current paths short and wide, using multiple vias to connect the thermal pad to a copper plane, and keeping the device away from noise-sensitive components.
  • To protect the TPIC7218QPFPRQ1 from overvoltage and undervoltage conditions, it is recommended to use a voltage regulator or a voltage supervisor to regulate the input voltage, and to add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • The recommended input capacitor value for the TPIC7218QPFPRQ1 is 10uF to 22uF, with a voltage rating of 25V or higher, to ensure stable operation and reduce noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPIC7218QPFPRQ1 Overview

Use the download button to access the TPIC7218QPFPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPIC7, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
