Texas Instruments provides a recommended PCB layout in the TPL1401DSGR datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize thermal issues.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and output current. TI provides guidelines for capacitor selection in the datasheet, including recommended values and types. Additionally, online capacitor selection tools can be used to find suitable components.
The TPL1401DSGR has a maximum ambient temperature rating of 85°C. However, the device's thermal performance may degrade at higher temperatures, and it's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to maintain optimal performance.
Yes, the TPL1401DSGR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to review the device's specifications and ensure it meets the specific requirements of the application.
TI provides a troubleshooting guide in the datasheet, which includes steps to identify and resolve common issues. Additionally, online resources, such as application notes and FAQs, can provide further guidance. It's also recommended to consult with TI's technical support team or a qualified engineer for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPL1401DSGR Overview

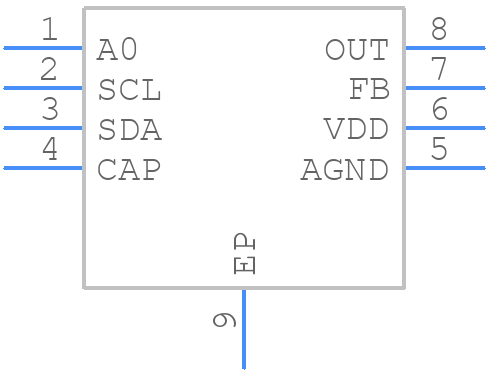

Use the download button to access the TPL1401DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPL14,
or try a keyword search, such as Digital Potentiometers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
