TPL5010DDCR - Texas Instruments

Description: Ultra Low Power Timer with Watchdog functionality and Manual Reset

Download TPL5010DDCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

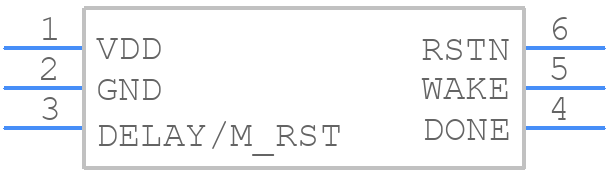

TPL5010DDCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPL5010DDCR - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DDC (R-PDSO-G6)
click to zoom
3D Models
TPL5010DDCR - Texas Instruments - 3D model - SOT23 (6-Pin) - DDC (R-PDSO-G6)
click to zoom

TPL5010DDCR Details

  • Manufacturer Part Number:

    TPL5010DDCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP, TSOP6,.11,37

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.00005 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    1.6 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE

TPL5010DDCR Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPL5010DDCR involves placing the device close to the power source, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the TPL5010DDCR is stable and does not oscillate, it is recommended to follow the recommended layout and placement guidelines, use a sufficient output capacitor, and ensure that the input voltage is within the recommended range. Additionally, it is recommended to add a small capacitor (e.g. 10nF) between the VDD and GND pins to improve stability.
  • The maximum input voltage that the TPL5010DDCR can handle is 5.5V. Exceeding this voltage may cause damage to the device.
  • The TPL5010DDCR is rated for operation up to 125°C. However, it is recommended to derate the device's performance at high temperatures. It is also recommended to ensure good thermal design and heat dissipation to prevent overheating.
  • The output voltage of the TPL5010DDCR can be calculated using the following formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors used in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.2V).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPL5010DDCR Overview

Use the download button to access the TPL5010DDCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPL50, or try a keyword search, such as Timers or RTCs
