TPL5110DDCT - Texas Instruments

Description: Ultra Low Power Timer with MOS driver and MOSFET Power ON

Download TPL5110DDCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

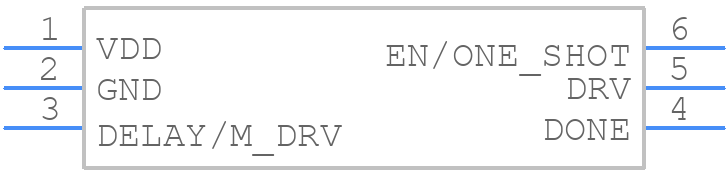

TPL5110DDCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPL5110DDCT - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DDC (R-PDSO-G6)
click to zoom
3D Models
TPL5110DDCT - Texas Instruments - 3D model - SOT23 (6-Pin) - DDC (R-PDSO-G6)
click to zoom

TPL5110DDCT Details

  • Manufacturer Part Number:

    TPL5110DDCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPL5110DDCT Frequently Asked Questions (FAQs)

  • The minimum input voltage required for the TPL5110DDCT to function properly is 1.8V. However, it's recommended to operate the device at a minimum of 2.5V to ensure reliable operation.
  • The TPL5110DDCT has an internal voltage regulator that helps to regulate the input voltage and provides some level of transient protection. However, it's still recommended to add external protection circuitry to handle large voltage transients.
  • The TPL5110DDCT can sink or source up to 100mA of current. However, it's recommended to limit the current to 50mA or less to ensure reliable operation and to prevent overheating.
  • The TPL5110DDCT has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. The device will automatically restart when the temperature drops below 140°C.
  • Yes, the TPL5110DDCT is designed to meet the requirements of high-reliability applications. It's manufactured using a high-reliability process and is screened to ensure that it meets the required specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPL5110DDCT Overview

Use the download button to access the TPL5110DDCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPL51, or try a keyword search, such as Analog Waveform Generation Functions

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
