TPL5111DDCT - Texas Instruments

Description: Ultra Low Power System Timer (35 nA) for Power Gating in duty cycled applications

Download TPL5111DDCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

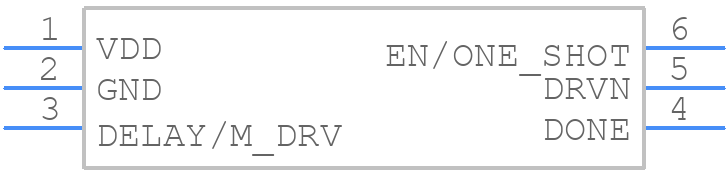

Symbol
TPL5111DDCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPL5111DDCT - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TPL5111DDCT
click to zoom
3D Models
TPL5111DDCT - Texas Instruments - 3D model - SOT23 (6-Pin) - TPL5111DDCT
click to zoom

TPL5111DDCT Details

  • Manufacturer Part Number:

    TPL5111DDCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPL5111DDCT Frequently Asked Questions (FAQs)

  • The minimum input voltage required for the TPL5111DDCT to operate is 1.8V, but it's recommended to use a minimum of 2.5V for reliable operation.
  • The TPL5111DDCT has an internal voltage regulator that helps to regulate the input voltage and provides some immunity to input voltage transients. However, it's still recommended to use external voltage regulation and filtering to ensure reliable operation.
  • The TPL5111DDCT can sink up to 100mA and source up to 10mA. However, it's recommended to limit the current to 50mA or less to ensure reliable operation.
  • The TPL5111DDCT has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. The device will automatically restart when the temperature drops below 140°C.
  • Yes, the TPL5111DDCT is designed for high-reliability applications and is qualified to automotive and industrial standards. However, it's recommended to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
