A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its recommended operating temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
To mitigate EMI and RFI, use proper PCB layout techniques, such as separating analog and digital circuits, using shielding, and minimizing loop areas. Also, ensure that the device is properly decoupled, and use EMI filters or common-mode chokes as needed.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the device is properly configured, and that the output capacitor is suitable for the application. Also, check for any signs of overheating or excessive current draw.
Operating the device beyond its recommended specifications can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to operate the device within its recommended specifications to ensure reliable operation and to prevent damage to the device or surrounding components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPL7407LAQPWRQ1 Overview

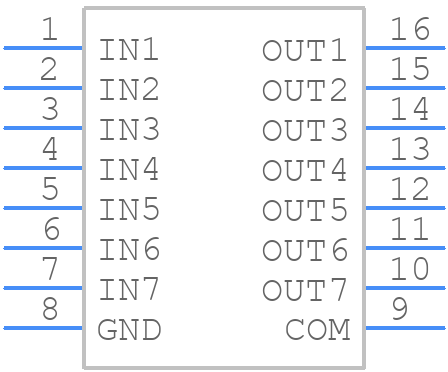

Use the download button to access the TPL7407LAQPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPL74,
or try a keyword search, such as Peripheral Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
