SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Technology:
MOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
5%
Width:
3 mm
TPPM0302DGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure the input and output capacitors are placed close to the device.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. Refer to the datasheet for specific recommendations and calculations.
The TPPM0302DGN is rated for operation up to 85°C ambient temperature. However, it's essential to consider the device's thermal characteristics, such as junction temperature (TJ) and thermal resistance (RθJA), to ensure reliable operation in your specific application.
Follow the recommended power-up and power-down sequences in the datasheet. Ensure the input voltage rises monotonically and reaches the minimum operating voltage before enabling the device. During power-down, ensure the input voltage falls below the minimum operating voltage before disabling the device.
To minimize EMI and noise, use a solid ground plane, keep the device and capacitors close to the PCB, and use shielding or filtering components as needed. Additionally, ensure the input and output traces are routed away from each other and from sensitive analog signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPPM0302DGN Overview

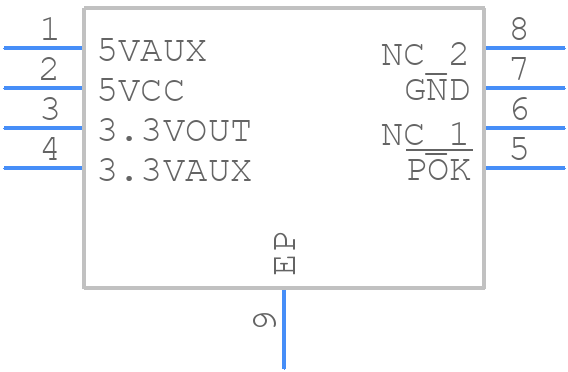

Use the download button to access the TPPM0302DGN schematic symbol, PCB footprint, and 3D model.
