Description:Power Switch ICs - Power Distribution 40-V, 16-m , 1-ch automotive smart high-side switch with adjustable current limit 16-HTSSOP -40 to 125
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its recommended operating temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
Exceeding the maximum junction temperature can lead to reduced device reliability, increased thermal resistance, and potentially even device failure. It's essential to ensure that the device operates within its recommended temperature range to prevent thermal-related issues.
To handle ESD protection for the TPS1HB16AQPWPRQ1, follow proper ESD handling procedures during device handling and assembly, and consider using ESD protection devices or circuits in the system design. Additionally, ensure that the device is properly grounded and that there are no unintended electrical paths that could compromise ESD protection.
When designing with the TPS1HB16AQPWPRQ1, it's essential to consider power sequencing and startup to ensure that the device is properly powered up and configured. This may involve using power sequencing controllers or implementing power-up reset circuits to ensure that the device is properly initialized.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS1HB16AQPWPRQ1 Overview

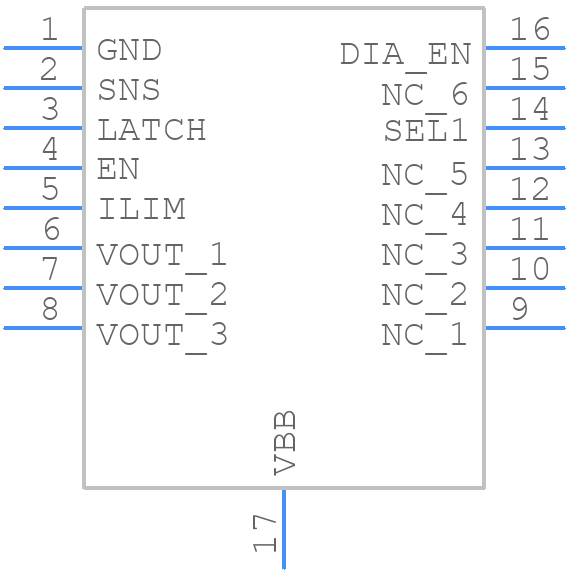

Use the download button to access the TPS1HB16AQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
